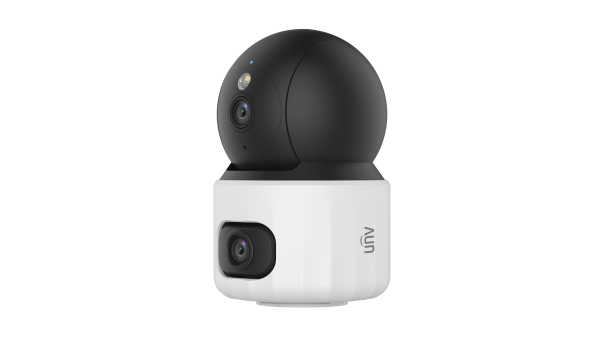

Uho-S3S-M33F36D-U - Uniview - Global AIoT Solutions Provider

	Uho-S3S-M33F36D-U
Channel	Panorama	Detail
Camera
Sensor	1/2.8" CMOS
Min. Illumination	Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	DWDR
Lens
Digital Zoom	N/A	4X
Iris	F2.0
Field of View (H)	109.2°	55.1°
Field of View (V)	57.9°	29.3°
Field of View (D)	117.8°	62.6°
Lens Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm	6.0 mm
DORI Distance (Detect)	51.4 m (168.7 ft)	110.2 m (361.6 ft)
DORI Distance (Observe)	20.6 m (67.5 ft)	44.1 m (144.6 ft)
DORI Distance (Recognize)	10.3 m (33.7 ft)	22.0 m (72.3 ft)
DORI Distance (Identify)	5.1 m (16.9 ft)	11.0 m (36.2 ft)
Illuminator
Illumination Distance (IR)	10 m (32.8 ft.)
Illumination Distance (Warm Light)	N/A	10 m (32.8 ft.)
Light On/Off Control	Auto/Manual
Wavelength	850 nm
Video
Video Compression	Ultra 265, H.265, H.264
Frame Rate-Main Stream	3MP (23041296), Max 15fps; 2MP (19201080), Max 15fps; 720P (1280*720), Max 15fps;
Frame Rate-Sub Stream	640360,Max 15fps; 2CIF(704288), Max 15fps; CIF(352*288), Max 15fps;
Video Bit Rate	128 Kbps to 2048 Kbps
ROI	Up to 8 areas
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
Video Stream	Dual streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	N/A
BLC	N/A
Defog	Digital defog
Events
Basic Detection	Motion detection, Ultra motion detection (human/ vehicle/ pet), Loud sound detection, Crying detection, Tampering alarm
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR
Network
Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API
Client	APP, EZStation
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Wi-Fi
Wireless Standards	IEEE802.11b/g/n/ax
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20/40 MHz Support
Modulation Mode	802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9
Receive Sensitivity	802.11b: -76 dBm@11 Mbps (Typical)802.11g: -65 dBm@54Mbps (Typical)802.11n: -61 dBm@MCS7, HT40 (Typical)802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate	802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps
PTZ
Pan Range	N/A	0° ~ 355°
Pan Speed	N/A	17°/s ~ 50°/s Preset speed: 50°/s
Tilt Range	0° ~ 15°	-15° ~ 90°
Tilt Speed	N/A	17°/s ~ 50°/s Preset speed: 50°/s
Number of Presets	20
Interface
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
General
Power	DC 5V/1.5A USB type-C interface
Dimensions	Φ83 x 127mm (Ø3.3” x 4.8”)
Working Environment	-10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	N/A
Reset Button	Support
LED Indicator	1, red/blue
RTC	Support

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/9/7 15:36:55	UNV Uho-S3S-M33F36D-U 3MP+3MP HD Indoor Dual lens PT Wi Fi Camera.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/7 13:13:25	Uho-S3S-M33F36D-U_HD_Image_1.png	png	Download
HD Image	2026/9/7 13:13:25	Uho-S3S-M33F36D-U_HD_Image_2.png	png	Download
HD Image	2026/9/7 13:13:25	Uho-S3S-M33F36D-U_HD_Image_3.png	png	Download
HD Image	2026/9/7 13:13:25	Uho-S3S-M33F36D-U_HD_Image_4.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/3 5:25:12	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/9/7 13:13:25	Uho-S3S-M33F36D-U_Dimensions_1.png	Download
