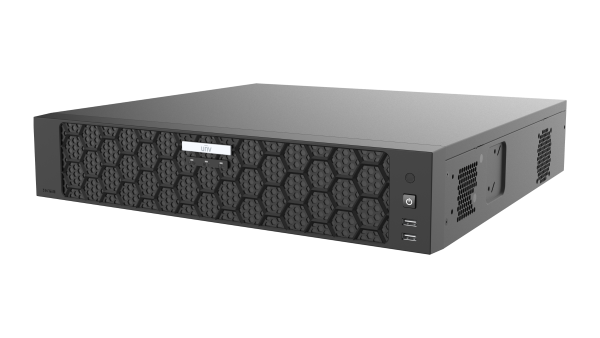

NVR508-16B - Uniview - Global AIoT Solutions Provider

NVR508-16B

NVR508-32B

NVR508-64B

Decoding

Decoding Format

Ultra 265, H.265, H.264

Decoding Capability

Smart off:
H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 960P@30
Smart on: When Smart by NVR on, the decoding capacity is same as Smart off

Smart off:
H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 32 x D1
Smart on: When Smart by NVR on, the decoding capacity is same as Smart off

Smart off:
H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1
Smart on: When Smart by NVR on, the decoding capacity is same as Smart off

Decoding Capability Description

The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.

Audio Compression

G.711A, G.711U

Network

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

160 Mbps

Max Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4

Browser (Plugin)

Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input

16-ch

32-ch

64-ch

RCA Audio Input

1-ch

Video/Audio Output

HDMI Output

4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

RCA Audio Output

1-ch

Liveview Display

1/4/6/8/9/16

1/4/6/8/9/16/25/36

Simultaneous Output:
VGA:1/4/6/8/9/16/25/36/64,HDMI:1/4/6/8/9/16/25/36/64,
Independent Output:
VGA:1/4/6/8/9/16/25/32,HDMI: 1/4/6/8/9/16/25/32

Corridor Mode Screen

3/4/5/7/9/10/12/16

3/4/5/7/9/10/12/16/32

Two-way Audio

1-ch, RCA (Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Recording

Recording Resolution

16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF

Synchronous Playback in Local

16-ch

Smart Function

Smart by IPC

All channels (up to 8 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting

VCA Search

Face detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map

Alarm

General Alarm

Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA

8 SATA Interfaces

Capacity

Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)

Disk Group

Support

Redundant Storage

Support

Disk Array Type

RAID 1, 5

External Interface

Network Interface

2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface

USB

Front panel: 2 × USB2.0, Rear panel: 1 × USB3.0

RS485

RS232

N/A

Alarm In

16-ch

Alarm Out

4-ch

Power Supply

AC 100 to 240 V

Power Switch

Support

Working Environment

Working Temperature

-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)

Working Humidity

≤ 90% RH (non-condensing)

Power Consumption (without HDD)

≤ 25W

Dimensions

Weight (without HDD)

≤ 5.5Kg (12.13lb)

Dimensions

442mm × 431.4mm × 88.6mm (17.4"×17.0"×3.5")

442mm × 426mm × 89mm (17.4"×16.8"×3.5")

Certification

CE; FCC; UL; RoHS; WEEE

EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035

FCC

Part15 Subpart B
