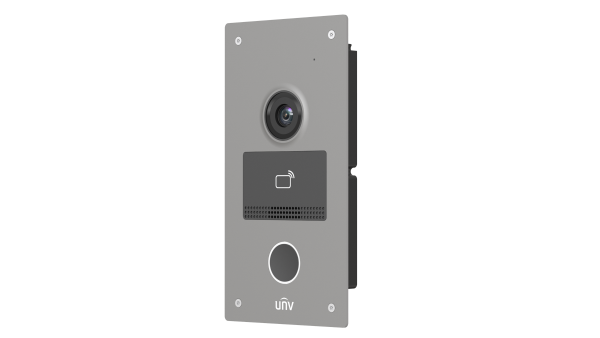

	OEU-201S-HMK-Z
Hardware Specification
Operation System	Linux
Supplement Light	IR light (adaptive)
FOV	Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2°
Power Consumption	< 10W
Volume Adjustment	Support
Audio Quality	Noise reduction, echo cancellation, auto gain control
Audio Input	Built-in mic
Audio Output	Built-in speaker
Audio Compression Standard	PCM, G711, MP3
Audio Compression Bitrate	128Kps
Protection Level	IP65 (Apply waterproof glue to the gap between the device and the wall. See the quick guide for details), IK08
Power Supply	DC12V ±25%, PoE power supply
Weight	267g
Mount Method	Wall mount, supports surface mount, junction box mount, recess mount
Network	100Mbps network interface, supports IEEE802.3af PoE power supply
Interface	Power supply1, network interface1, RS4851, door lock interface2, IO input*4
Dimensions (L x W x H)	102mm x 31.6mm x 194mm
Operating Environment	- 40°C to 60°C, 10% to 90% noncondensing, outdoor
Operating Frequency	13.56MHz
Basic Business
WDR	Supports DWDR
Protocol	Uniview private protocol
Button	Door call button1, tamper button1
Network protocol	TCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Specification Index
Card Capacity	10000
Linked Indoor Station Capacity	20
Compliance
NDAA Compliant	Support
