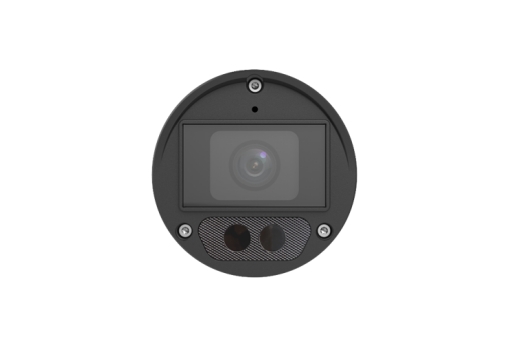

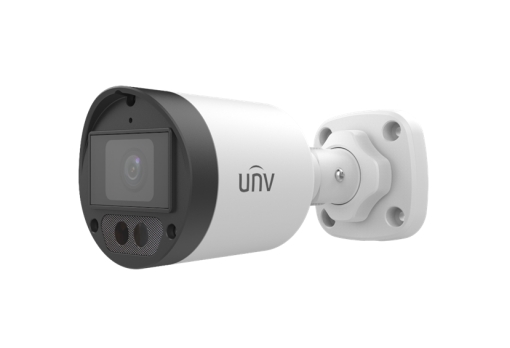

Model | UAC-B122-APF28LM |
Sensor | |
Pixel | 2MP |
Size | 1/2.9" |
Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
Lens | |
Lens | 2.8mm |
Lens mount | M12 |
Angle of view | H: 101.5° V: 56.9° D: 117.4° |
Illuminator | |
Illuminator | Two IR illuminators |
Illumination distance | 40m |
Lifetime | ≥60,000 hours |
Video | |
Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
Frame rate | TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
Image | |
Exposure mode | Four modes: Global (default), BLC, HLC, DWDR |
Day/Night | Three modes: Auto (default), Day, Night |
Digital noise reduction | 2D/3D |
White balance | Two modes: Auto (default), Manual |
WDR | DWDR |
Smart IR | Support |
Flip | Supports 180° horizontal flip, 180° vertical flip |
Defog | Digital Defog |
Audio | |
Microphone | Built-in Mic |
Camera audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
Interface | |
Power | 5.5mm power interface |
Video output | BNC, supports TVI/AHD/CVI/CVBS |
Operating environment | |
Temperature | -30°C to 60°C (-22°F to 140°F) |
Humidity | ≤95% (RH, non-condensing) |
Surge protection | 4kV |
General | |
Power | DC 12V (±25%)/PoC, with reverse polarity protection, Max 3.2W |
Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket |
Dimensions | 154mm*66mm*66mm (L*W*H) |
Material | Metal+Plastic |
Weight | 256g (0.56lb) |
OSD menu language | 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish |
Certification | |
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
Safety | CE-LVD (EN 62368-1) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
Protection | IP67 (IEC 60529) |
