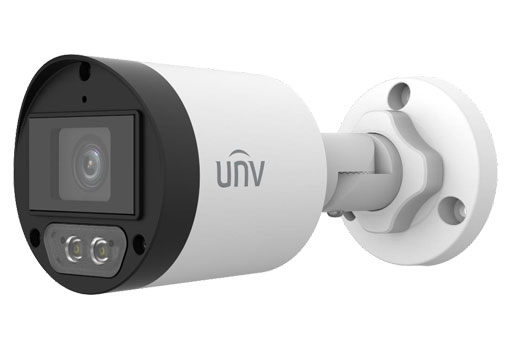

Model | UAC-B125-AF28M-W | UAC-B125-AF40M-W |
Sensor | ||
Pixel | 5MP | |
Size | 1/2.7" | |
Minimum illumination | 0.005 lux (F1.4, AGC ON) 0 lux (white light on) | |
Lens | ||
Lens | 2.8mm | 4.0mm |
Lens mount | M12 | |
Angle of view | H: 111.5° V: 58.9° D: 134.8° | H: 89.6° V: 48.3° D: 106.4° |
Illuminator | ||
Illuminator | Two white-light illuminators | |
Illumination distance | 40m | |
Lifetime | ≥60,000 hours | |
Video | ||
Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |
Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC | |
Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
Image | ||
Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
Day/Night | 24/7 color images | |
Digital noise reduction | 2D | |
White balance | Two modes: Auto (default), Manual | |
WDR | DWDR | |
Flip | Supports 180° horizontal flip, 180° vertical flip | |
Audio | ||
Microphone | Built-in Mic | |
Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps | |
Interface | ||
Power | 5.5mm power interface | |
Video output | BNC, supports TVI/AHD/CVI/CVBS | |
Operating environment | ||
Temperature | -30°C to 60°C (-22°F to 140°F) | |
Humidity | ≤95% (RH, non-condensing) | |
Surge protection | 4kV | |
Ingress protection | IP67 | |
General | ||
Power | DC12V (±25%), with reverse polarity protection. Max 3.28W | |
Mount | 3D bracket supplied, surface mount (default), optional junction box | |
Dimensions | 157.4mm*66.5mm*66.5mm (L*W*H) | |
Material | Metal | |
Weight | 279g (0.62lb) | |
Certification | CB, CE, FCC, UL |
