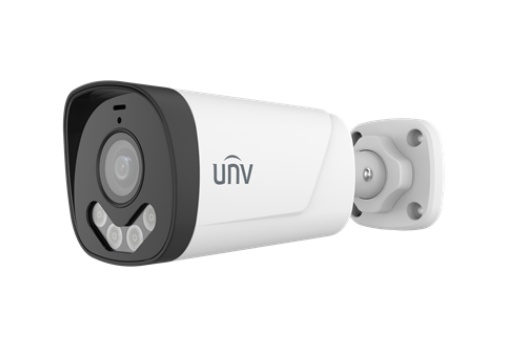

Model | UAC-B142-AF28LM-DL | UAC-B142-AF40LM-DL |
Sensor | ||
Pixel | 2MP | |
Size | 1/3" | |
Minimum illumination | 0.003 lux (F1.6, AGC ON) 0 lux (Illuminator ON) | |
Lens | ||
Lens | 2.8mm | 4.0mm |
Lens mount | M12 | |
Angle of view | H: 100.9° V: 56.5° D: 121.8° | H: 82.5° V: 42.1° D: 98.6° |
Illuminator | ||
Illuminator | Two IR illuminators; Two white-light illuminators | |
Illumination distance | IR: 40m (131.23 ft) White light: 40m (131.23ft) | |
Lifetime | ≥60,000 hours | |
Video | ||
Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) | |
Frame rate | TVI/AHD/CVI: 1080P@25fps (default TVI), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC | |
Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
Image | ||
Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
Day/Night | Three modes: Auto (default), Day, Night | |
Digital noise reduction | 2D/3D | |
White balance | Two modes: Auto (default), Manual | |
WDR | DWDR | |
Light mode | Dual light (default) , Infared, White light | |
Flip | Supports 180° horizontal flip, 180° vertical flip | |
Defog | NA | |
Audio | ||
Microphone | Built-in Mic | |
Camera audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps | |
Interface | ||
Power | 5.5mm power interface | |
Video output | BNC, supports TVI/AHD/CVI/CVBS | |
Operating environment | ||
Temperature | -30°C to 60°C (-22°F to 140°F) | |
Humidity | ≤95% (RH, non-condensing) | |
Surge protection | 4kV | |
General | ||
Power | DC 12V (±25%), with reverse polarity protection, Max 3.6W | |
Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket | |
Dimensions | 198mm*74mm*74mm (L*W*H) | |
Material | Metal+Plastic | |
Weight | 227g (0.50lb) | |
OSD menu language | 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish | |
Certification | ||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | |
Safety | CE-LVD (EN 62368-1) | |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |
Protection | IP67 (IEC 60529) |
