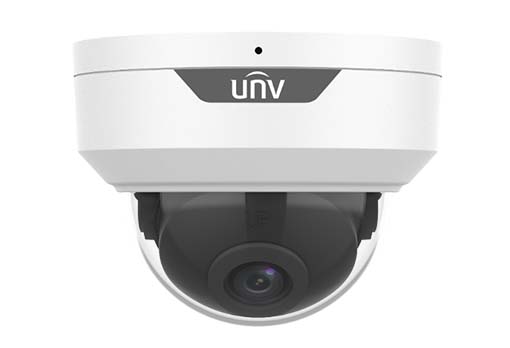

Model | UAC-D125-AF28M | UAC-D125-AF40M |
Sensor | ||
Pixel | 5MP | |
Size | 1/2.7" | |
Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) | |
Lens | ||
Lens | 2.8mm | 4.0mm |
Lens mount | M12 | |
Angle of view | H: 109.1° V: 60.9° D: 126.7° | H: 91.3° V: 46.1° D: 109.6° |
Illuminator | ||
Illuminator | One IR illuminator | |
Illumination distance | 30m | |
Lifetime | ≥60,000 hours | |
Video | ||
Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |
Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC | |
Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
Image | ||
Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
Day/Night | Three modes: Auto (default), Day, Night | |
Noise reduction | 2D | |
White balance | Two modes: Auto (default), Manual | |
WDR | DWDR | |
Smart IR | Support | |
Flip | Supports 180° horizontal flip, 180° vertical flip | |
Audio | ||
Microphone | Built-in Mic | |
Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps | |
Interface | ||
Power | 5.5mm power interface | |
Video output | BNC, supports TVI/AHD/CVI/CVBS | |
Operating environment | ||
Temperature | -30°C to 60°C (-22°F to 140°F) | |
Humidity | ≤95% (RH, non-condensing) | |
Surge protection | 4kV for power and video output interfaces | |
Ingress protection | IP67 | |
IK rating | IK10 | |
General | ||
Power | DC 12V(±25%), with reverse polarity protection, Max 3.3W | |
Mount | Surface mount (default), optional tilted mounting bracket | |
Dimensions | Φ109mm*83mm (diameter*height) | |
Material | Metal | |
Weight | 372g (0.82lb) | |
Certification | CB, CE, FCC, UL |
