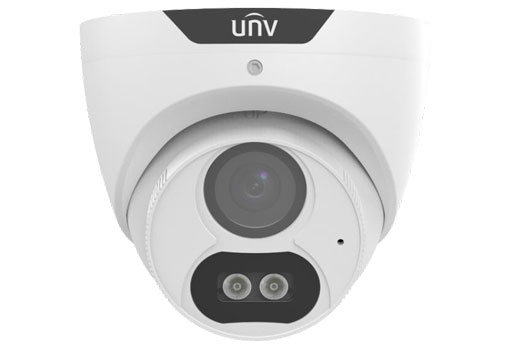

Model | UAC-T122-AF28M-W | UAC-T122-AF40M-W |
Sensor | ||
Pixel | 2MP | |
Size | 1/2.9" | |
Minimum illumination | 0.005lux (F1.6, AGC ON) 0 lux (white light on) | |
Lens | ||
Lens | 2.8mm | 4.0mm |
Lens mount | M12 | |
Angle of view | H: 101.5° V: 56.9° D: 117.4° | H: 83.8° V: 42.7° D: 100.1° |
Illuminator | ||
Illuminator | Two white-light illuminators | |
Illumination distance | 40m | |
Lifetime | ≥60,000 hours | |
Video | ||
Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) | |
Frame rate | TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC | |
Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
Image | ||
Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
Day/Night | 24/7 color images | |
Digital noise reduction | 2D/3D | |
White balance | Two modes: Auto (default), Manual | |
WDR | DWDR | |
Flip | Supports 180° horizontal flip, 180° vertical flip | |
Defog | Digital Defog | |
Audio | ||
Microphone | Built-in Mic | |
Camera audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps | |
Interface | ||
Power | 5.5mm power interface | |
Video output | BNC, supports TVI/AHD/CVI/CVBS | |
Operating environment | ||
Temperature | -30°C to 60°C (-22°F to 140°F) | |
Humidity | ≤95% (RH, non-condensing) | |
Surge protection | 4kV | |
Ingress protection | IP67 | |
General | ||
Power | DC 12V (±25%), with reverse polarity protection. Max 3.12W | |
Mount | Surface mount (default), optional junction box and wall mount bracket | |
Dimensions | Φ111mm*96mm (diameter*height) | |
Material | Metal and plastic | |
Weight | 356g (0.79lb) | |
Certification | CB, CE, FCC, UL |
