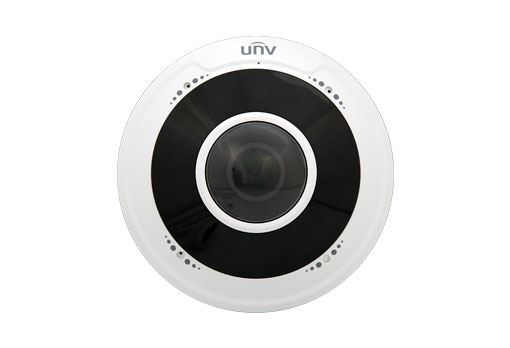

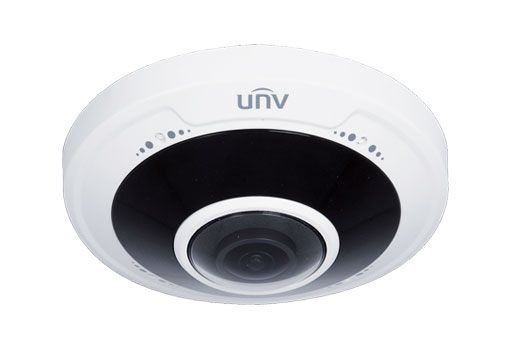

IPC815SB-ADF14K-I0 | |||||
Camera | |||||
Image sensor | 1/2.8", progressive scan, 5.0 megapixel, CMOS | ||||
Minimum Illumination | Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR | ||||
Day/Night | IR-cut filter for day & night function | ||||
Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||
WDR | 120dB | ||||
S/N | >55dB | ||||
Lens | |||||
Lens type | 1.4mm@F2.0 | ||||
Iris | Fixed | ||||
Angle of View | 360° | ||||
DORI | |||||
DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
1.4mm | 31.5 | 12.6 | 6.3 | 3.2 | |
Illuminator | |||||
IR Range | UP to 10m (33ft) | ||||
wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Compression | Ultra 265, H.265, H.264, MJPEG | ||||
H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
Frame Rate | Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
U-code | Support | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 4 areas | ||||
ROI | Up to 8 areas | ||||
Video Stream | Triple streams | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/ Flip Horizontal/180° | ||||
Dewarping | N/A | ||||
HLC | N/A | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Events | |||||
Statistical Analysis | heat map | ||||
Basic Detection | Motion detection, tampering alarm, audio detection | ||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711 | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way audio | Supported | ||||
Suppression | Supported | ||||
Sampling Rate | 8 KHZ | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256GB | ||||
Network Storage | ANR, NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation EZView EZLive | ||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||
Live View Display | |||||
Mount Type | Support table, wall, and ceiling | ||||
Decoding Mode | Support software decoding | ||||
Display Mode | 11 display modes in total Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ | ||||
Interface | |||||
Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||||
Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||
Alarm I/O | 1/1 | ||||
RS485 | N/A | ||||
Built-in Mic | Supported 2 | ||||
Built-in Speaker | N/A | ||||
WIFI | N/A | ||||
Network | 1 * RJ45 10M/100M Base-TX Auto-adaptive Ethernet | ||||
Video Output | N/A | ||||
Certifications | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||
General | |||||
Power | DC12V±25%,PoE (IEEE 802.3af) | ||||
Power consumption: Max. 8.5W | |||||
Power Interface | Ø 5.5mm coaxial power plug | ||||
Dimensions (Φ × H) | Φ125 × 43.7 mm (Φ4.9" × 1.7") | ||||
Weight | 0.36kg (0.79lb) | ||||
Material | Metal + Plastic | ||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
surge protection | 4KV | ||||
Reset Button | Supported |
