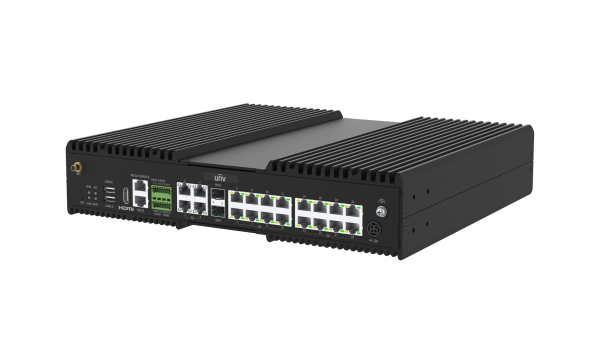

| IVT2600@A-A16S-OS | ||||||||
| Device Specifications | ||||||||
| Video decoding | H.264, H.265 | |||||||
| Camera connection | Max 16 channels | |||||||
| Image composition | Supports composition of 2, 3, 4, or 6 images | |||||||
| Image operations | Image storage, search, view, export, and uploads | |||||||
| Image OSD | Text OSD including plate number, time, location, etc., on single or composite images | |||||||
| Hard disk storage | Supplied with 1*4TB hard disk Expansion to 4 * 3.5” SATA disk, up to 8TB each | |||||||
| External interfaces | ||||||||
| Network interface | Dual NICs with support for dual-network isolation dual-network interconnection. NIC1: 16 * Gigabit Ethernet interfaces (RJ45). NIC2: 2 * Gigabit optical interface, 4 * Gigabit Ethernet interfaces (RJ45). | |||||||
| USB interface | 2 * USB 3.0, compatible with USB 2.0 | |||||||
| Serial interface | 2 x RS-232, 2 x RS-485 | |||||||
| Alarm input | 2 x alarm input (phoenix connector) | |||||||
| Alarm output | 2 x alarm output (phoenix connector) | |||||||
| Power output | DC12V, 500mA | |||||||
| Power input | DC12V, 10A | |||||||
| Hardware Parameter | ||||||||
| Power consumption | < 30W (with 1 HDD, and heating module off) < 85W (with 1 HDD, and heating module on) < 110W (with HDD fully configured, and heating module on) | |||||||
| Operating temperature | -30ºC to 70ºC | |||||||
| Operating humidity | 5% to 95% (noncondensing) | |||||||
| Weight | With 1 supplied HDD: < 7kg Fully loaded with HDD: < 9kg | |||||||
| Dimensions | 350mm(W) × 320mm(D) × 72mm(H) | |||||||
| Certification | ||||||||
| EMC | CE EMC: EN 55032: 2015+A11:2020+A1:2020 EN 55035: 2017+A11:2020 EN 61000-3-3: 2013+ A1:2019+A2:2021 EN IEC 61000-3-2: 2019+A1:2021 | |||||||
| Safety | CE LVD:EN IEC 62368-1:2020+A11:2020 | |||||||
