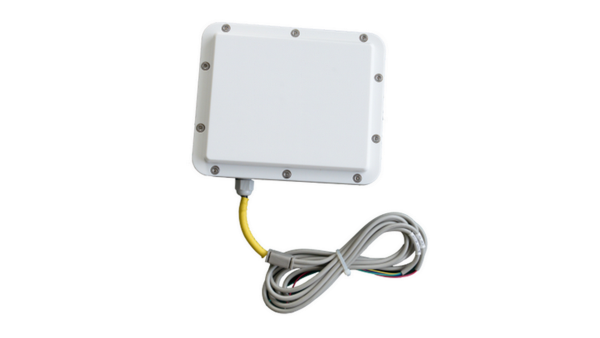

| MPR-MU1-OS | ||||||||
| Object detection | ||||||||
| Detection direction | Incoming | |||||||
| Speed accuracy | 3km/h | |||||||
| Distance accuracy | ± 0.5m | |||||||
| Hardware | ||||||||
| Operating temperature | 0% to 95% RH | |||||||
| Total weight | ≤ 0.45kg | |||||||
| Operating humidity | -35°C to 85°C | |||||||
| Ingress protection | IP66 | |||||||
| Operating frequency | 24.15GHz | |||||||
| Interface Characteristics | ||||||||
| Power supply | DC 12 V | |||||||
| Communication interface | 1 x RS485 | |||||||
| Specifications | ||||||||
| Dimensions | 168mm*140mm*50mm | |||||||
| Mount method | ||||||||
| Front mount | 5 to 10m, it is recommended to install at the road center with the height of 6 meters | |||||||
| Application Scenario | ||||||||
| Application Scenario | Road section | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2026/6/22 10:01:25 | UNV MPR-MU1-OS Positioning and Capture Radar (Single-Lane) 20231228.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2026/6/5 10:26:16 | MPR-MU1-OS_HD_Image_1.png | png | Download |
| Class | Date | Title | Download |
| Dimensions | 2026/6/5 10:26:16 | MPR-MU1-OS_Dimensions_1.png | Download |
