12Gbps SAS-3 technology provides superior performance experience

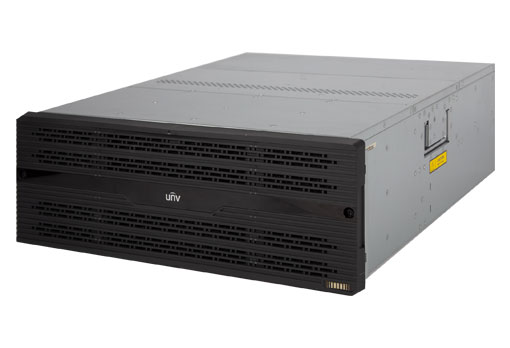

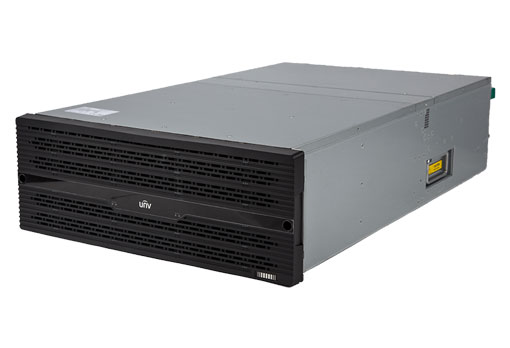

The innovative enclosure with 801mm depth and4U height that holds up to 48 disks, is space-saving .
Redundant power supplies
The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.
Disk powered on sequentially during system startup, protection from impulse current.
Multistage fan speed and energy saving
Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.
|Management Interface||2 Serial port|
|Back-end Expansion Interface||2-port 4*12 Gbps Mini SAS HD||2-port 4*12 Gbps Mini SAS HD（Primary ）|
2-port 2*12 Gbps Mini SAS HD（Backup）
|HDD||48 SATA Interfaces||24 SATA Interfaces|
|Disk Capacity||1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB,8TB,10TB, 12TB,14TB, 16TB,18TB|
(W x D x H)
|482mm X801mm X 178mm |
Note：for standard cabinet with 1000mm depth or above
|482mm X589mm X 175mm|
|Power Consumption||410W (fully loaded)||250W (fully loaded)|
|Power Supply||100V – 127V/200V – 240V AC；60Hz/50Hz|
|Weight||Fully loaded：60< kg||Fully loaded：< 38kg|
|Authentication certificate||CE, FCC, UL|
|Operating temperature||5°C ~ 40°C / 41°F ~ 104°F|
|Recommended temperature||10 °C~ 35 °C / 50°F ~ 95°F|
|Humidity||20%~80% RH (non-condensing)|
