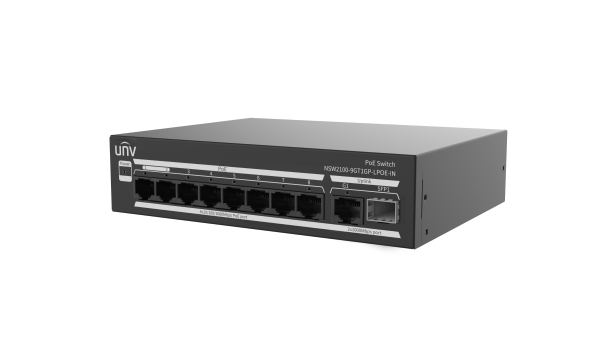

| NSW2100-9GT1GP-LPOE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 8x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP | |||||||
| Switching capacity | 20Gbps | |||||||
| Forwarding performance | 14.88Mpps | |||||||
| Packet Buffer | 4 M bit | |||||||
| MAC | 8K | |||||||
| Prior Ports | 1 to 2 | |||||||
| Dimensions (W×D×H) | 169*132*40mm | |||||||
| Power Supply | AC: 100V to 240V, 50/60Hz | |||||||
| PoE Standard | IEEE 802.3af, IEEE 802.3 at | |||||||
| PoE Mode | ModeA (1236),ModeB (4578) | |||||||
| Max.PoE Power | Max capacity:65W Maximum PoE power for single port: 30W | |||||||
| Max.Power | 70W | |||||||
| Cooling Fans | 0 | |||||||
| Weight | 0.71KG | |||||||
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | |||||||
| Operating Humidity | 10% to 90% (noncondensing) | |||||||
| Indicator | Power: Off: Abnormal power input. Green: Normal power input. Yellow: The total PoE power is higher than 85% of the total power of the device. Link/Act: Off: Disconnected to the port On: Connected to the port. Blinking: Transmitting data. | |||||||
| Software Specification | ||||||||
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes. Supports enabling/disabling ports. Supports port auto-negotiation rate. Supports port flow statistics. Supports four link aggregation groups (up to eight ports). | |||||||
| VLAN | allows up to 10 VLANs with IDs from 1 to 4094 | |||||||
| MAC | Support static MAC, up to 32. | |||||||
| POE | Allows to view PoE status and enable/disable PoE power supply in the APP | |||||||
| Loop Detection | Loop Detection | |||||||
| Security | Supports port isolation | |||||||
| Maintenance | Supports N:1 port mirroring. Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software. | |||||||
| System | Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name. | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
