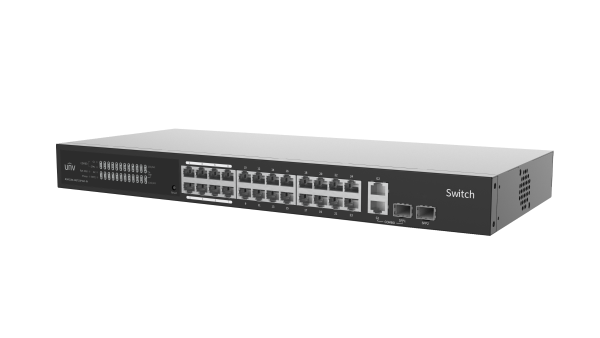

| NSW2100-25GT1GP1GC-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 24 x 10/100/1000Mbps port (RJ45), 1 x 10/100/1000Mbps port (RJ45) , 1 x Gigabit SFP, 1 x Gigabit Combo | |||||||
| Switching capacity | 54Gbps | |||||||
| Forwarding performance | 40.176Mpps | |||||||
| Packet Buffer | 4 M bit | |||||||
| MAC | 8K | |||||||
| Dimensions (W×D×H) | 440*189.8*44mm | |||||||
| Power Supply | AC: 100V to 240V, 50/60Hz | |||||||
| Max.Power | 18W | |||||||
| Cooling Fans | 0 | |||||||
| Weight | 1.78kg | |||||||
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | |||||||
| Operating Humidity | 10% to 90% (noncondensing) | |||||||
| Indicator | Power: Off: Abnormal power input. Green: Normal power input. Link/Act: Off: Disconnected to the port. On: Connected to the port. Blinking: Transmitting data. | |||||||
| Software Specification | ||||||||
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes. Supports enabling/disabling ports. Supports port auto-negotiation rate. Supports port flow statistics. | |||||||
| VLAN | allows up to 32 VLANs with IDs from 1 to 4094. | |||||||
| MAC | Support static MAC, up to 32. | |||||||
| Loop Detection | Loop Detection | |||||||
| Security | Supports port isolation | |||||||
| Maintenance | Supports N:1 port mirroring. Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software. | |||||||
| System | Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name. | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2026/6/23 7:48:47 | UNV NSW2100-25GT1GP1GC-IN Lite Cloud Managed Gigabit Ethernet Switch.pdf | English | Preview | Download A > | |
| Datasheet | 2026/6/23 7:48:46 | UNV NSW2100-25GT1GP1GC-IN Lite Cloud Managed Gigabit Ethernet Switch.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2026/6/24 2:05:49 | NSW2100-25GT1GP1GC-IN_HD_Image_1.png | png | Download |
| HD Image | 2026/6/24 2:05:49 | NSW2100-25GT1GP1GC-IN_HD_Image_2.png | png | Download |
| HD Image | 2026/6/24 2:05:49 | NSW2100-25GT1GP1GC-IN_HD_Image_3.png | png | Download |
| HD Image | 2026/6/24 2:05:49 | NSW2100-25GT1GP1GC-IN_HD_Image_4.png | png | Download |
| HD Image | 2026/6/24 2:05:49 | NSW2100-25GT1GP1GC-IN_HD_Image_5.png | png | Download |
| HD Image | 2026/6/24 2:05:49 | NSW2100-25GT1GP1GC-IN_HD_Image_6.png | png | Download |
| Class | Date | Title | Language | Type | Preview | Download |
| Quick Guide | 2026/5/7 4:10:44 | Quick Guide.pdf | English | Preview | Download A > |
| Class | Date | Title | Download |
| Dimensions | 2026/6/24 2:05:49 | NSW2100-25GT1GP1GC-IN_Dimensions_1.png | Download |
