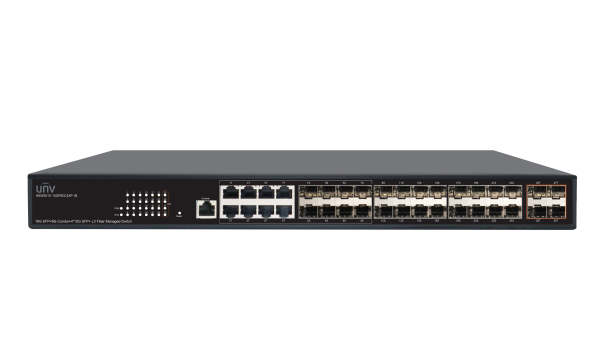

| NSW5610-16GP8GC4XP-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 16*1000Mbps SFP Ports 8*1000Mbps Combo Ports 4* 10Gbps SFP+ Slots 1*Console Port | |||||||
| Forwarding performance | 95.23Mpps | |||||||
| Switching capacity | 128Gbps | |||||||
| Packet Buffer | 16M bits | |||||||
| Jumbo Frame | 12K | |||||||
| Max.Power | 90W | |||||||
| Power Supply | 100~240V AC, 50/60Hz | |||||||
| Dimensions (W×D×H) | 440*260*44mm | |||||||
| Operating Temperature | 0°C to 40°C | |||||||
| Storage Temperature | -40°C to 70°C | |||||||
| Operating Humidity | 10% to 90% (noncondensing) | |||||||
| Storage Humidity | 5% to 90% (noncondensing) | |||||||
| Software Specification | ||||||||
| MAC | 16K, Auto-learning, Auto-aging | |||||||
| Ethernet | Support MRPP,ULPP, ULSM, port mirror. Support Link Aggregation, LLDP, port config | |||||||
| VLAN | VLAN(802.1Q 4K) Access/Trunk/Hybrid Private VLAN VLAN Filter MAC-based VLAN Protocol-based VLAN IP Subnet-based VLAN Voice VLAN GVRP/GMRP QinQ/Selective-QinQ/Flexible QinQ VLAN Translation/N:1 VLAN Translation Guest VLAN | |||||||
| ARP | Static ARP ARP Scanning Prevention ARP Spoofing Prevention ARP Guard Gratuitous ARP Dynamic ARP Inspection ARP Quantity Control | |||||||
| IP Route | Static Route(IPV4/IPV6) Route Aggregation, RIP v1/v2/RIPng, OSPF v2/v3, BGP4/BGP6, IPv4/IPv6 VRRP, IPv4/IPv6 PIM, Stacking VSF | |||||||
| Maintenance | Console/Telnet/SSH Http/Https, SSL/TLS FTP/TFTP Syslog SNMP(v1/v2c/v3) , SNMP Trap RMON SNTP/NTP CPU protect Software/Hardware watchdog Firmware Upgrade/Backup Ping/Traceroute | |||||||
| Security | 802.1x: Port Based Authentication, Support EAPoR, MAC based Authentication, Guest VLAN. MAB: Based on Port Authentication, Based on MAC Authentication. MAC Address Count limit: Based on Port, Based on VLAN. IP Address Count Limit: Based on Port, Based on VLAN. Access Management: Based on source mac and IP address. Deny DoS Attack: TCP Flag, TCP Flagment, IP Segment, ICMP. TACACS+: Standard Support. Radius: Standard Support, Client, Support MD5. SSL: Openssl 1.1.0. | |||||||
| QoS | Support SP, WRR, WDRR queue scheduling. Support Trust COS/DSCP, Trust Port. Support Based on VLAN, Based on COS/DSCP, Aggregate Policy-Map, Ingress Policy-Map. Policing: CAR Stream Shaping(leak algorithm), Ingress Policing. Rewrite: COS/802.1p Priority, IP Precedence, IPv4 DSCP/IPv6 DSCP, drop-precedence, internal-priority, Ingress/Egress Rewrite. Queuing: DSCP to DSCP mapping, DSCP to DP mapping, DSCP to Queue mapping, COS to DP mapping, COS to Queue mapping. | |||||||
| ACL | IP-ACL: SIP/DIP, IP Protocol, IP Priority(DSCP,TOS, Precedence), TCP,UDP src,dst Port. MAC-ACL: SRC/DST MAC, VLAN, COS, Tag/Untag. IP-MAC ACL: MAC-ACL and IP-ACL. User-defined ACL: Base on user defined profile. ACL Features: Based on time period ACL, ACL on VLAN, Based on ACL Stream. | |||||||
| Reliability | Support Loopback Detection, ERPS, STP/RSTP/MSTP, MSTP Support 64 instance, BPDU Guard/Root, Guard/BPDU Tunnel | |||||||
| DHCP | DHCP Client/BOOTP, DHCP Relay, DHCP Snooping, DHCP Option 82/43/60/61/67, DHCP Server, DHCPv6 Server | |||||||
| Multicast | Multicast VALN, IGMP SNOOPING, V1/V2/V3, Fast Leave, IGMP Proxy | |||||||
