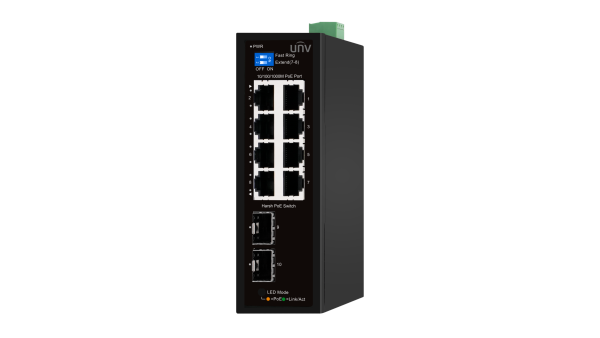

HS2000-8GT2GP-POE-IN - Uniview - Global AIoT Solutions Provider


HS2000-8GT2GP-POE-IN

Unmanaged Harsh Ethernet Switch(PoE)

• Support IEEE 802.3af/at standard. Port 1 supports HiPoE with a maximum of 60W.
• IP40 protection level, high-strength aluminum shell, DIN35 rail installation
• Industrial grade 4-level design, operating temperature from -30~65°C
• Support redundant power supply connection and anti reverse connection

Fiche technique
Image HD
Guide de démarrage rapide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/7/23 10:41:46	UNV HS2000-8GT2GP-POE-IN Harsh PoE Switch.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/16 2:05:13	HS2000-8GT2GP-POE-IN_HD_Image_1.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/3 4:44:05	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/9/16 2:05:13	HS2000-8GT2GP-POE-IN_Dimensions_1.png	Download

	HS2000-8GT2GP-POE-IN
Hardware Specification
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Ports Type	810/100/1000Mbps RJ45 PoE Ports 21000Mbps SFP Slots
Switching capacity	20Gbps
Jumbo Frame	10KBytes
Forwarding performance	14.88Mpps
Packet Buffer	4 M bit
Max.PoE Power	Max capacity: 120W Port 1(HiPoE) : Maximum PoE power for single port: 60W. Port2-8 Maximum PoE power for single port: 30W
Max.Power	130W
MAC	8K
Transfer Mode	Store-and-forward
Dimensions (W×D×H)	13810851mm
Operating Temperature	-30°C to 65 °C
Operating Humidity	10% ~ 95% non-condensing
Storage Humidity	5% ~ 95% non-condensing
Indicator	PWR (Green) Off: Powered off On: Powered on POE(Yellow) On: PoE powered on Off: PoE powered off Ports G5-G6 /G9-G10(Green) On: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting
Electrostatic Standard	Air 15KV, Contact 8KV (Class C)
Surge Protection	Common mode 6KV, Differential mode 2KV (Class B)
Power Supply	DC:48-57V, powered by adapter. Max.Power 128W . Adapter: AC100-240V, 50/60Hz
Working Mode	Fast Ring: Fast Ring on, T<2sExtend：Extend mode, ports 7-8 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode
