True color display and perfect color reproduction
Wide viewing angle:178°(H)/ 178°(V)
No color shift from any view angle
Specific menu design, which is simple to operate
Support7*24working and lower power consumption
Adaptively recognize signal
VESA stand bracket
High fidelity digita processing for a brilliant and vivid video
Professiona therma design to extend equipment lifespan
Screen can reduce blue light, protect eyes
Without ripple,use smooth dimming with DC to eliminate screen flicker
Three sides super slim design, min width can be 2.8mm
High light transmittance, uniform brightness, rich color, wide color gamut

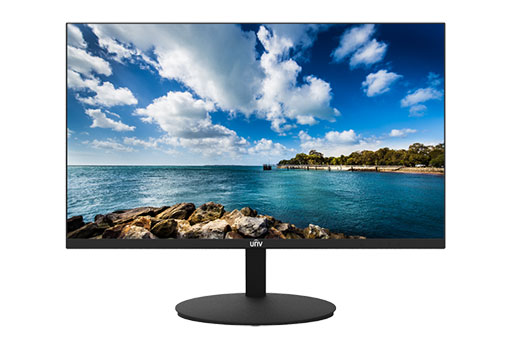

| Model | MW3224-V |
| Display | |
| Display Type | LED Backlight |
| Screen Size | 23.8” |
| Aspect Ratio | 16:9 |
| Pixel Pitch(mm) | 0.2745* 0.2745 |
| Max Resolution | 1920*1080 |
| Brightness | 250 cd/m2 |
| Contrast | 1000:1 |
| Response Time | 14ms |
| Color | 16.7M |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| Refresh Rate | 60Hz |
| Interface | |
| Input | 1*VGA, 1*HDMI |
| Audio | |
| Audio Input | 1, 3.5 mm mini-jack |
| Speaker | 2 * 1.5W |
| OSD | |
| Multi- Language | 2(English, Simplified Chinese ) |
| Mounting | |
| VESA | 100mm * 100mm |
| Wall-mounted Thread | 4-M4 Threaded hole, depth 10mm |
| General | |
| Power supply | DC 12V, 2A |
| Consumption | <24 W(on) <0.5 W(Standby) |
| Operation Temperature | 0°C ~ 40 °C(32°F~104°F) |
| Operating Humidity | 20%~85% (No Condensation) |
| Storage Temperature | -10°C ~50°C (14°F~122°F) |
| Storage Humidity | 10%~90% (No Condensation) |
| Dimension (W×H×D) | 541.8mm * 412.6mm * 200mm(With Pedestal) 21.33"*16.24"*7.87"(With Pedestal) |
| Package(W×H×D) | 606mm * 405mm * 125mm (23.86" * 15.94" * 4.92") |
| Weight | Net Weight:3.3Kg(7.28lb) Gross Weight:4.6Kg(10.14lb) |
| Accessory | |
| Standard | HDMI cable, Power cable, Adapter, Pedestal, Quick Guide |
| Optional | Hanging bracket(Model: HB-4022-E) |
