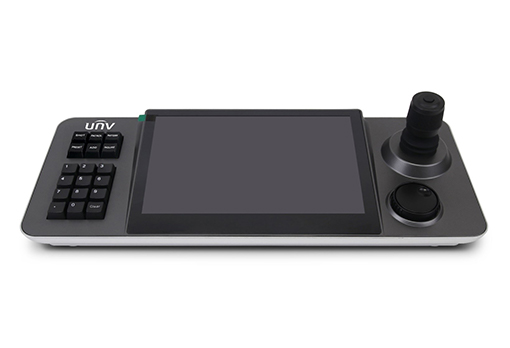

10.1” capacitive touch screen, 1280*800 resolution.
4D joystick control.
Supports image displaying on the touch screen or projecting to an HDMI-connected display device.
Supports simultaneous displaying of 8 video channels.
Supports connecting Uniview IPCs and NVRs via network.
Supports a maximum of 5,000 channels.
Supports H.264 and H.265.
Capable of decoding 1*4K, 4*1080P, or 8*720P videos.
Supports PTZ control, including up/down/left/right movement, zoom/focus operations.
Upgradeable via a USB drive.
| Function | Parameter |
| General | |
| Screen size | 10.1 inches |
| Decoding format | H.264/H.265 |
| Decoding capability | 1*4K@25fps/4*1080@30fps/8*720P@30fps |
| Split screen | 1/4/9 (supports simultaneous display of up to 8 channels) |
| Signal output | |
| HDMI output resolution | 1920x1080@60Hz |
| Interface | |
| Serial interface | 1 × RS-232 serial interface (DB9, reserved) 1 × RS-485 serial interface (half-duplex, reserved) |
| HDMI output | 1 × HDMI 1.3 |
| Network interface | 1 × 10M/100M adaptive Ethernet interface (RJ45) |
| Audio jack | 1 × standard 3.5mm audio jack (reserved) |
| Power interface | DC 12V power interface |
| Hardware | |
| Power consumption | < 15W |
| Operating temperature | -10℃ to 40℃ |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage temperature | -40℃ to 60℃ |
| Dimensions (W × H × D) (mm) | 449.7 × 115.4 × 178.6 |
| Net weight | 1.4 kg |
