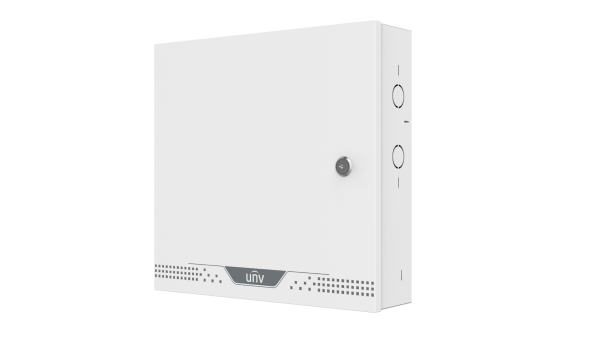

| OER-602 | ||||||||
| Specification Index | ||||||||
| Card Capacity | Common card + personnel password: 200,000 Duress card + duress password: 1,000 Other cards: 100 | |||||||
| Event Capacity | 300,000 | |||||||
| Time Template | 256 | |||||||
| Holiday Template | 256 | |||||||
| Check Template | Supports up to 16 check templates configured by weekly schedule, up to 8 time periods per day, and up to 3 authentication modes per time period | |||||||
| Basic Business | ||||||||
| Communication Mode | TCP/IP | |||||||
| Hardware Specification | ||||||||
| Network Interface | 1 x 100Mbps Ethernet interface | |||||||
| Number Of Controllable Door | 2 | |||||||
| Wiegand Interface | 4 x Wiegand input | |||||||
| RS485 Interface | 4 | |||||||
| IO Input | 1 x fire input, 4 x zone input, 4 x case input | |||||||
| IO Output | 4 | |||||||
| Power Output | 2 x DC12V (maximum current for door lock: 5A, for card reader: 1.5A) | |||||||
| Door Lock Interface | 2 x door lock control (NC+/NO+/COM) 2 x door magnet, 2 x exit button | |||||||
| Tamper Button | Support | |||||||
| Application | Indoor | |||||||
| Operating Temperature | -30°C to 65°C | |||||||
| Rated Input Voltage | AC100V to AC240V (50/60Hz) | |||||||
| Spare Power Supply | DC12V/7AH, user-prepared | |||||||
| Air Circuit Breaker | Built-in | |||||||
| Mount Method | Wall mount | |||||||
| Indicator | Power indicator: Steady red when the device is connected to power Operation indicator: Blinks green when the operation is normal Door lock indicator: Steady green when the lock is open Fault indicator 485 indicator Charging indicator Network indicator | |||||||
| Dimensions (L x W x H) | 342mm*325.5mm*88mm | |||||||
| Weight | 3500g | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
