DEU1016-B - Uniview - Leader of AIoT Solution


DEU1016-B

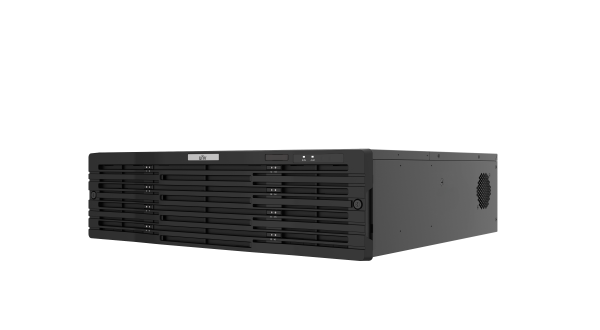

16 HDDs 3U Disk Enclosure

• High density. The innovative enclosure with 477mm depth and 3U height that holds up to 16 disks, is space-saving and applicable to the standard rack-mounted scenarios.
• Power protection. Disk powered on sequentially during system startup, protection from impulse current.

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 11:38:20	UNV DEU1016-B Disk Enclosure.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/10/28 3:09:18	DEU1016-B_HD_Image_1.png	png	Download
HD Image	2025/10/28 3:09:18	DEU1016-B_HD_Image_2.png	png	Download
HD Image	2025/10/28 3:09:18	DEU1016-B_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2025/6/7 4:02:53	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2025/10/28 3:09:18	DEU1016-B_Dimensions_1.png	Download

	DEU1016-B
Hard Disk
SATA	16 SATA Interfaces
Capacity	Up to 16TB for each disk
External Interface
miniSAS	1
RS232	1
Power Supply	AC 100～240V
Working Environment
Working Temperature	-10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
Working Humidity	5%~95% RH (non-condensing)
Power Consumption (With HDD)	< 160W(With 16 HDDs)
Dimensions
Weight (Without HDD)	< 10Kg (22lb)
Dimensions	482mm × 477mm× 131mm (19.0"×18.8"×5.1")
Height	3U
