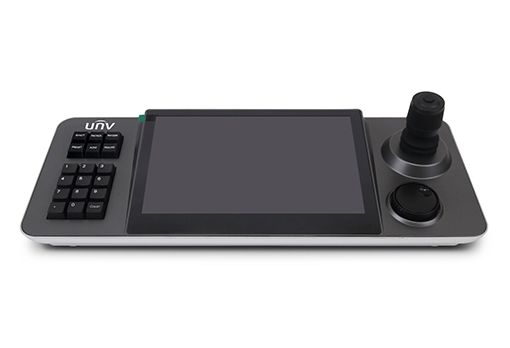

10.1” capacitive touch screen, 1280*800 resolution.
4D joystick control.
Supports image displaying on the touch screen or projecting to an HDMI-connected display device.
Supports simultaneous displaying of 8 video channels.
Supports connecting Uniview IPCs and NVRs via network.
Supports a maximum of 5,000 channels.
Supports H.264 and H.265.
Capable of decoding 1*4K, 4*1080P, or 8*720P videos.
Supports PTZ control, including up/down/left/right movement, zoom/focus operations.
Upgradeable via a USB drive.
|Screen size||10.1 inches|
|Split screen||1/4/9 (supports simultaneous display of up to 8 channels)|
|HDMI output resolution||1920x1080@60Hz|
|Serial interface||1 × RS-232 serial interface (DB9, reserved)|
1 × RS-485 serial interface (half-duplex, reserved)
|HDMI output||1 × HDMI 1.3|
|Network interface||1 × 10M/100M adaptive Ethernet interface (RJ45)|
|Audio jack||1 × standard 3.5mm audio jack (reserved)|
|Power interface||DC 12V power interface|
|Power consumption||< 15W|
|Operating temperature||-10℃ to 40℃|
|Operating humidity||10% to 90% RH (non-condensing)|
|Storage temperature||-40℃ to 60℃|
|Dimensions (W × H × D) (mm)||449.7 × 115.4 × 178.6|
|Net weight||1.4 kg|
