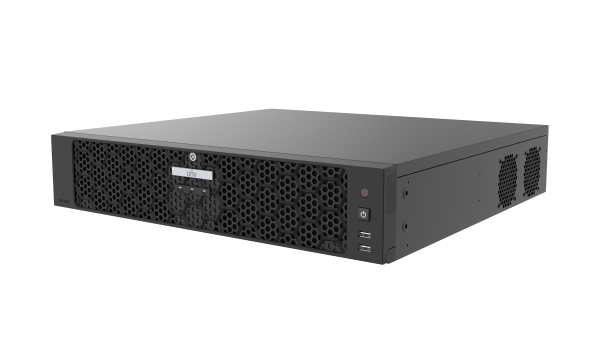

NVR508-32E-R - Uniview - Leader of AIoT Solution

NVR508-32E-R

NVR508-64E-R

NVR508-128E-R

Decoding

Decoding Format

Ultra 265, H.265, H.264

Decoding Capability

2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30

2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30

2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30, 128 x D1

Decoding Capability Description

The resolution of each channel cannot exceed 8192 pixels in length or width

Audio Compression

G.711A, G.711U

Network

Incoming Bandwidth

384 Mbps

Outgoing Bandwidth

384 Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4

Browser (Plugin)

IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

RCA Audio Input

1-ch

Video/Audio Output

HDMI Output

4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

RCA Audio Output

2-ch

Liveview Display

1/4/6/8/9/16/25/32

HDMI1/VGA1:1/4/6/8/9/16/25/36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36

Corridor Mode Screen

3/4/5/7/9/10/12/16/32

Two-way Audio

1-ch, RCA (Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot

16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Recording

Recording Resolution

32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF

Synchronous Playback in Local

16-ch

Smart

VCA Detection by IPC

Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring

VCA Search

Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map

Smart by IPC

All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

Vehicle Picture Library

Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

Alarm

General Alarm

Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA

8 SATA Interfaces

Capacity

Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)

Disk Group

Support

Disk Array Type

RAID 0, 1, 5, 6, 10

Hot Swap

Support

External Interface

Network Interface

2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface

USB

Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0

RS485

1

RS232

1

Alarm In

16-ch

Alarm Out

10-ch

eSATA

1

Power Output

12 V

Power Supply

AC 100 to 240 V

Working Environment

Working Temperature

-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)

Working Humidity

≤ 90% RH (non-condensing)

Power Consumption (without HDD)

≤ 35W

Dimensions

Weight (without HDD)

≤ 6Kg (13.23lb)

Dimensions

442mm × 448mm × 93mm (17.4" × 17.6" × 3.7")

Certification

CE; FCC; UL; RoHS; WEEE

CE

EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035

FCC

Part15 Subpart B

PWR-DC12-350A-IN

350W Power Accessories Module
