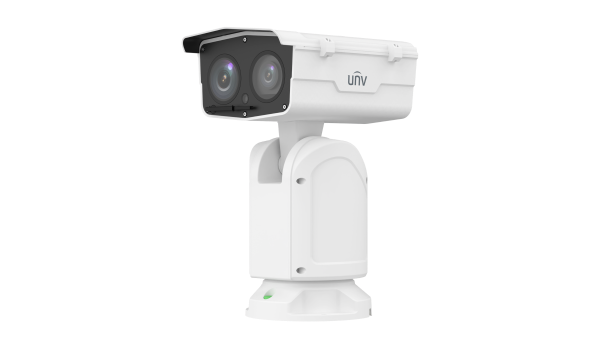

| IPC7628EL-L-X41-VH1 | ||||||||
| Camera | ||||||||
| Max Resolution | 8 MP | |||||||
| Sensor | 1/1.8" CMOS | |||||||
| Min. Illumination | Color: 0.0002 Lux (F1.2, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 6~246mm | |||||||
| Digital Zoom | 16X | |||||||
| Optical Zoom | 41X | |||||||
| Iris | F1.2(W)~F4.6(T) | |||||||
| Field of View (H) | 57.96° (W) to 2.15° (T) | |||||||
| Field of View (V) | 34.61° (W) to 1.21° (T) | |||||||
| Field of View (D) | 75.3° (W) to 2.6° (T) | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 155.5 m to 4829.4 m (510.2 ft. to 15844.5 ft) | |||||||
| DORI Distance (Observe) | 62.2 m to 1931.8 m (204.0 ft. to 6337.8 ft) | |||||||
| DORI Distance (Recognize) | 31.1 m to 965.9 m (102.0 ft. to 3169.0 ft) | |||||||
| DORI Distance (Identify) | 15.5 m to 482.9 m (51.0 ft. to 1584.4 ft) | |||||||
| Video | ||||||||
| Privacy Mask | 24 areas, up to 8 areas per scene | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 8 MP (3840 × 2160), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps | |||||||
| Frame Rate Recommendation | 8 MP@30 fps + 1080P@30 fps + D1@30 fps | |||||||
| Video Bit Rate | 128Kbps~16384Kbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Intelligent | ||||||||
| Multi-target Detection | Support | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Support | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Voltage detection, Object removed, Object Left Behind | |||||||
| General Function | Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Illuminator | ||||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Illumination Distance (VF laser) | 1000 m (3280.8 ft) | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6 | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator,common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above | |||||||
| PTZ | ||||||||
| Number of Presets | 1024 | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
| Recorded Patrol | Support | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Preset Image Freeze | Support | |||||||
| Home Position | Support | |||||||
| Number of Presets (IPC) | 1024 | |||||||
| Pan Range | 360° (endless) | |||||||
| Tilt Range | 45° to -90° | |||||||
| Pan Speed | 0.1°/s to 140°/s | |||||||
| Tilt Speed | 0.1°/s to 50°/s | |||||||
| 3D Positioning | Support | |||||||
| Number of Patrol | 16 | |||||||
| Snow Removal Mode | Support | |||||||
| Patrol Recording | Support | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 7/2 | |||||||
| Serial Port | 1 * RS485 | |||||||
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP | |||||||
| Video Output | 1 BNC (for debugging) | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032:2015,EN 50130-4:2011+A1:2014, EN 61000-3-2:2014, EN 61000-3-3:2013)FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
| Safety | CE LVD (EN IEC 62368-1:2020+A11:2020)UL (UL UL 62368-1, 3rd Ed.,2021-10-22) | |||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP66(IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25% | |||||||
| Power Consumption | Max. 114 W | |||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | 366 mm × 283 mm × 509 mm (14.4" × 11.1" × 20.0") (L × W × H) | |||||||
| Weight | 15.42 kg (34 lb) | |||||||
| Working Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| RTC | Support | |||||||
| Material | Metal | |||||||
| Live View | ||||||||
| Maximum Bitstream | 35 | |||||||
| Maximum Bandwidth | 50 Mbps | |||||||
| Plugin Free | Support | |||||||
| OSD Font | Vector | |||||||
| OSD Color | Support | |||||||
| OSD Character Number | 40 | |||||||
| 3D Privacy Mask | Support | |||||||
| Compliance | ||||||||
| NDAA Compliant | N/A | |||||||
| Configurable | ||||||||
| P/N | Support | |||||||
