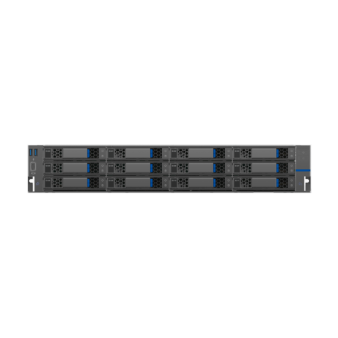

| VS-R5320-B2X@N-IN | ||||||||
| Hardware Parameters | ||||||||
| CPU | Intel_4310_Xeon*2, support 2* 3rd-generation Intel® Xeon® Scalable processors | |||||||
| RAM | 32GB*4, total 32 slots | |||||||
| Standard HDD | 4T SATA HDD*1 | |||||||
| Front HDD expansion | 4*2.5/3.5-inch SAS/SATA/SSD HDDs, expandable to 12*2.5/3.5-inch SAS/SATA/SSD HDDs | |||||||
| Network interface | GE*2, supports PCIe network interface expansion | |||||||
| Management | 1*1000Mbps network interface dedicated for IPMI remote management | |||||||
| USB | 2*USB 3.0 (rear) | |||||||
| VGA | 1* VGA interface (rear) | |||||||
| PCIE card slots | 6*PCI-E 4.0 slots | |||||||
| Built-in RAID controller | 1 (sold separately) | |||||||
| Power supply | 1+1 redundancy | |||||||
| Dimensions | 87.8mm(H)x446mm(W)x794mm(D) | |||||||
| Power input | See the nameplate | |||||||
| Weight | 35KG (fully loaded) | |||||||
| Environment temperature | Operating: 5°C to 40°C Non-operating: -40°C to 60°C | |||||||
| Relative humidity | Operating: 35% to 80% Non-operating: 20% to 93% | |||||||
