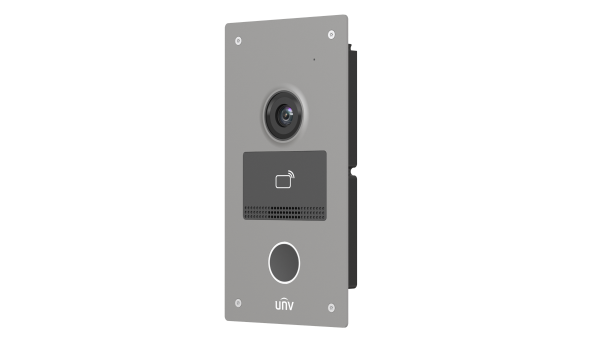

| OEU-201S-HMK-Z | ||||||||
| Hardware Specification | ||||||||
| Operation System | Linux | |||||||
| Supplement Light | IR light (adaptive) | |||||||
| FOV | Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° | |||||||
| Power Consumption | < 10W | |||||||
| Volume Adjustment | Support | |||||||
| Audio Quality | Noise reduction, echo cancellation, auto gain control | |||||||
| Audio Input | Built-in mic | |||||||
| Audio Output | Built-in speaker | |||||||
| Audio Compression Standard | PCM, G711, MP3 | |||||||
| Audio Compression Bitrate | 128Kps | |||||||
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. See the quick guide for details), IK08 | |||||||
| Power Supply | DC12V ±25%, PoE power supply | |||||||
| Weight | 267g | |||||||
| Mount Method | Wall mount, supports surface mount, junction box mount, recess mount | |||||||
| Network | 100Mbps network interface, supports IEEE802.3af PoE power supply | |||||||
| Interface | Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 | |||||||
| Dimensions (L x W x H) | 102mm x 31.6mm x 194mm | |||||||
| Operating Environment | - 40°C to 60°C, 10% to 90% noncondensing, outdoor | |||||||
| Operating Frequency | 13.56MHz | |||||||
| Basic Business | ||||||||
| WDR | Supports DWDR | |||||||
| Protocol | Uniview private protocol | |||||||
| Button | Door call button*1, tamper button*1 | |||||||
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP | |||||||
| Specification Index | ||||||||
| Card Capacity | 10000 | |||||||
| Linked Indoor Station Capacity | 20 | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/12/6 1:00:33 | UNV OEU-201S-HMK-Z Villa Door Station.pdf | English | Preview | Download A > | |
| Datasheet | 2025/12/6 1:00:34 | UNV OEU-201S-HMK-Z Villa Door Station.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/11/5 3:01:11 | OEU-201S-HMK-Z_HD_Image_1.png | png | Download |
| HD Image | 2025/11/5 3:01:11 | OEU-201S-HMK-Z_HD_Image_2.png | png | Download |
| HD Image | 2025/11/5 3:01:11 | OEU-201S-HMK-Z_HD_Image_3.png | png | Download |
| Class | Date | Title | Language | Type | Preview | Download |
| User Manual | 2024/12/25 10:08:58 | UNV-Indoor Station & Villa Door Station User Manual.pdf | English | Preview | Download A > |
| Class | Date | Title | Language | Type | Preview | Download |
| Quick Guide | 2025/10/29 4:04:00 | Quick Guide.pdf | English | Preview | Download A > |
| Class | Date | Title | Download |
| Dimensions | 2025/11/5 3:01:11 | OEU-201S-HMK-Z_Dimensions_1.png | Download |
| Title | Language | Type | Download |
| GVIC-B1101.7.3.241212.zip | English | zip | Download |
