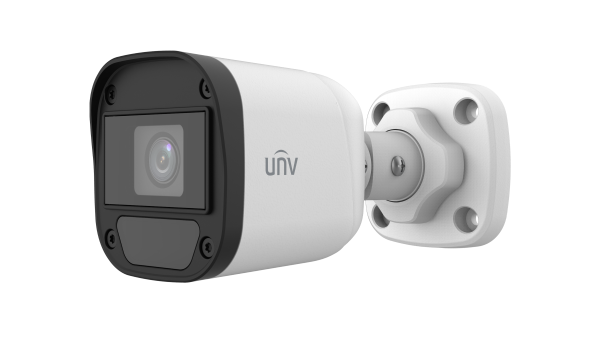

UAC-B115-F28 - Uniview - Leader of AIoT Solution

Техническая документация
Руководство пользователя
Краткое руководство
Габаритные размеры

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 11:52:25	UNV UAC-B115-F28(40) 5MP HD Fixed IR Mini Bullet Analog Camera.pdf	English	pdf	Preview	Download
Datasheet	2026/6/23 11:52:25	UNV UAC-B115-F28(40) 5MP HD Fixed IR Mini Bullet Analog Camera.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/7/22 3:00:37	UAC-B115-F28_HD_Image_1.png	png	Download
HD Image	2026/7/22 3:00:37	UAC-B115-F28_HD_Image_2.png	png	Download
HD Image	2026/7/22 3:00:37	UAC-B115-F28_HD_Image_3.png	png	Download
HD Image	2026/7/22 3:00:37	UAC-B115-F28_HD_Image_4.png	png	Download
HD Image	2026/7/22 3:00:37	UAC-B115-F28_HD_Image_5.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
User Manual	2025/7/1 10:46:07	UNV-Analog Cameras User Manual.pdf	English	pdf	Preview	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/5/9 4:07:58	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/7/22 3:00:37	UAC-B115-F28_Dimensions_1.png	Download

	UAC-B115-F28	UAC-B115-F40
Camera
Max Resolution	5 MP
Sensor Size	1/2.7" CMOS
Min. Illumination	0.02 lux (F2.0, AGC ON) 0 lux (IR on)
Lens
Focus	2.8 mm	4.0 mm
Lens Mount	M12
Angle of View (H)	102.2°	82.9°
Angle of View (V)	53.9°	46.1°
Angle of View (D)	124.8°	100.0°
Illuminator
Illuminator Number	One IR illuminator
Illumination Distance	20m
Lifetime	≥ 60000 hours
Video
Resolution	5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Frame Rate	TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D/3D	2D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180°horizontal flip, 180°vertical flip
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4 KV for power, 4 KV for video output interfaces
General
Power	DC 12 V ± 25%
Power Consumption	MAX 3.6W
Mount	Corner Mount, Pole Mount
Dimensions	142mm63mm65mm (LWH)
Material	Plastic
Weight	135g(0.30lb)
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
