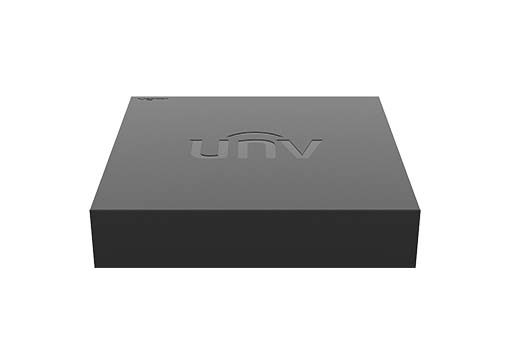

XVR301-F—Zhejiang Uniview Technologies Co., Ltd.

Support H.265/H.264 video formats
Support audio over coaxial cable(only for TVI cameras)
Support analog camera upgrade over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4/8-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols

Model	XVR301-04F			XVR301-08F
Video/Audio Input
Analog Video Input	4-ch, BNC			8-ch, BNC
IP Video Input	2-ch(only IP up to 6ch), each channel up to 6MP			2-ch(only IP up to 10ch), each channel up to 6MP
Supported Analog Camera Types	Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input			Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Compression	G.711U
Video/Audio Output
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Synchronous Playback	HD:4-ch SD:4-ch			HD:8-ch SD:8-ch
Live view display	HDMI/VGA: 1/4/6/8/9			HDMI/VGA: 1/4/6/8/9/16
Network
Incoming Bandwidth	24Mbps (Up to 32Mbps after all analog channel conversion)			24Mbps (Up to 40Mbps after all analog channel conversion)
Outgoing Bandwidth	48Mbps			64Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Encoding
Recording Resolution	1080P Lite/720P/D1		1080P Lite/720P/D1
Recording Frame Rate	Main stream	Sub stream	Main stream		Sub stream
	1080P Lite@25fps	D1@25fps	1080P Lite@15fps		D1@12fps
	720P@30fps	D1@30fps	720P@15fps		D1@15fps
Audio Sample Rate	8KHz,16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding
Capability	Analog:4 x 1080P Lite@25, 4 x 720P@30 IP: 1 x 6MP@20, 2 x 1080P@30		Analog:8x 1080P Lite @15, 8x 720P @15 IP: 1 x 6MP@20, 2 x 1080P@30
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
General Alarm
General Alarm	Motion detection
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
General
Power Supply	12V DC Power Consumption: ≤ 10 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	190mm × 202mm × 42mm (7.5" × 7.9" × 1.6")
Weight ( without HDD )	≤0.6 Kg ( 1.32lb )
Certification
Certification	UL/CE/FCC /RoHS /WEEE

Datasheet of XVR301-F Series
