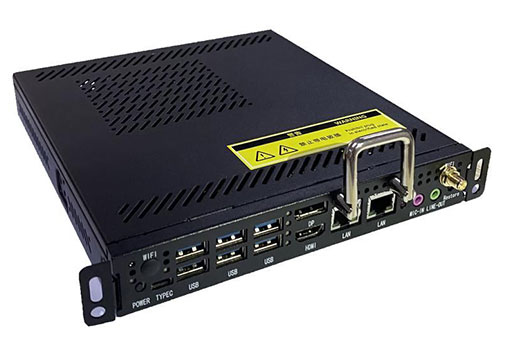

Supports 7th generation Intel® Core™ processors with Kaby Lake-U architecture, providing powerful performance.
Takes up less space with a slim and compact design.
Meets OPS standard, and can be used with smart interactive displays.
DP/HDMI interface supports synchronous and asynchronous display and 4K UHD display.
The wireless network supports hotspot mode.
Two LAN interfaces, which support remote startup of the device via the network.
BIOS supports diskless boot, power-on boot, and scheduled boot.
Supports one-key recovery.
Model | HB-7099-M-A |
Parameters | |
CPU | Intel® Core™ i5 7th generation |
RAM | 4GB DDR4 2400MHz for each channel, expandable to 16GB |
Chipset | Intel Skylake-U |
Display | Intel integrated HD graphics, supports synchronous and asynchronous display |
Network | 2 * Realtek RTL8111H NIC chip, Gigabit NIC |
1 * MINI PCI-E interface, supports Wi-Fi | |
Audio | Realtek ALC662 5.1 channel HD audio |
Storage | 1 * SATA、1 * MSATA SSD interface (SSD-128G) |
Power-On Boot | BIOS supports |
Compatibility | Windows 7/8/10, Linux |
Interfaces | |
Display Interfaces | 1 * DP、1 * HDMI |
USB | 6 * USB 3.0 |
Network | 2 * LAN Gigabit NIC |
Audio | 1 * audio input、1 * audio output |
Other Parameters | |
Dimensions(L * W * H) | 195.0mm * 180.0mm * 30.0mm |
Weight | 1.5kg |
Packing Method | Cardboard box |
Security Lock | No |
Heat Dissipation Method | Fan |
