Content of Data Sheet | ||||

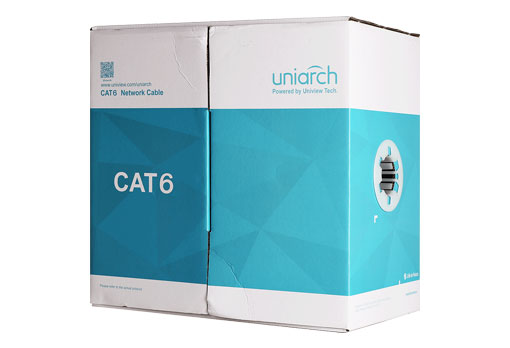

Product model | CAB-6-AE/CAB-6-BE | |||
Product specification | HSYV-6 4×2×0.52 | |||
Test Standard | ISO/IEC11801、TIA-568-C.2 | |||
Conductor | Material | OFC(Oxygen free copper) | ||
AWG | 24 | |||
Nom.O.D.(mm) | 0.52±0.03 mm | |||
DC resistance | ≤95 Ω/km | |||
Insulation | Material | HDPE | ||
Thickness | 0.2±0.02 mm | |||
Diameter | 0.93±0.05 mm | |||
Color | Blue/White- Blue | Green/White-Green | ||
Orange/White-Orange | Brown/White-Brown | |||
Pitch | Offset pitch | ≤20 mm | ||
Cable pitch | ≤120 mm | |||
Sheath | Material | PVC(complies RoHS/REACH) | ||
External O.D. | 5.8±0.3 mm | |||
Color | Orange | |||
Tensile strength | >13.5 Mpa | |||
Thickness | 0.6±0.05 mm | |||
Surface Printing | Letter height | 3.0±0.3 mm | ||
Color | Black | |||
Print error & Space | 1±0.005 m | |||
Case number | Yes | |||
Packing | Packing | Carton | ||
Once packing dimension | 420mm*205mm*420mm | |||
Twice packing dimension | 450mm*440mm*445mm | |||
Twice packing quantity | 2 cases | |||
Packing length | 305±1m | |||
Rip-cord | Yes | Crossing backbone | Yes | |
Ambient temperature | -20℃~60℃ |
