OER-SR12, OER-SR22, OER-SR42

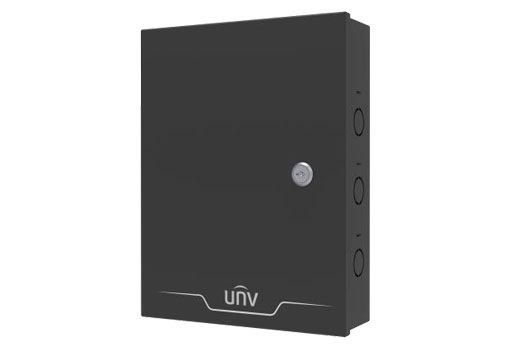

Access Controller

TCP/IP communication, secure and reliable.

Large capacity, max 42,000 cards and 200,000 events.

Different mounting holes for easy installation.

Supports remote upgrade.

Supports real-time monitoring setup.

Supports issuing cardsusing card readers.

Özellikleri
İndirme
Nasıl Satın Alabilirsiniz
ParameterDescription
ModelOER-SR12OER-SR22OER-SR42
NameSingle-door access controllerDouble-door access controllerFour-door access controller
Card capacity42,00042,00042,000
Event capacity200,000200,000200,000
Communication modeTCP/IPTCP/IPTCP/IP
Door control1 door2 doors4 doors
Card reader248
Wiegand input interface
(Max DC14V withstand voltage)		248
Wiegand formatWG18/26/34/66WG18/26/34/66WG18/26/34/66
Relay output1 set (7A)2 sets (7A)4 sets (7A)
Door magnetic port124
Fire module expansion port111
Operating environmentIndoorIndoorIndoor
Operating temperature-10°C to +65°C-10°C to +65°C-10°C to +65°C
Rated input voltageAC 100V to 240V(50Hz or 60Hz)AC 100V to 240V(50Hz or 60Hz)AC 100V to 240V(50Hz or 60Hz)
MountWall mountWall mountWall mount
Dimensions (L x W x H)235mm x 305mm x 76mm235mm x 305mm x 76mm235mm x 305mm x 76mm
