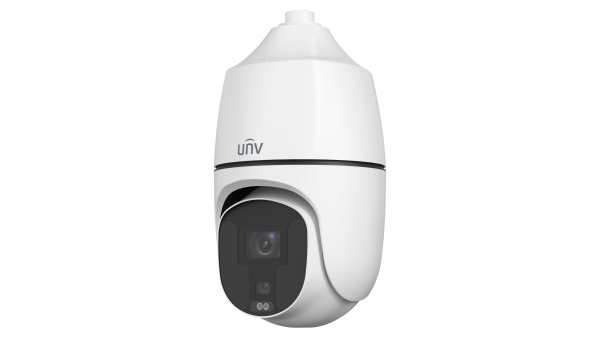

| | IPC68188EFW-X25-F40G-VH |
| Channel | Channel 1 (Panorama) | Channel 2 (Detail) |
| Camera |
| Max Resolution | 8 MP |
| Sensor | 1/1.8" CMOS | 1/1.2" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.6, AGC ON), 0 lux with IR/Warm light | Color: 0.0005 Lux (F1.6, AGC ON), 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Lens |
| Digital Zoom | N/A | 16X |
| Optical Zoom | N/A | 25X |
| Iris Type | Fixed | P-iris |
| Intelligent |
| Metadata Analyse | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | N/A | Support people flow counting and crowd density detection |
| DORI |
| DORI Distance (Lens) | 4 mm | 10 to 250 mm |
| Video |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 30 fps; 6 MP (3072 × 2048), max. 30 fps; 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate Recommendation | 3840 × 2160@30 fps + 1080P@30 fps + D1@30 fps 3072 × 2048@30 fps + 1080P@30 fps + D1@30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
| Image |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | N/A | Support |
| Defog | Digital defog | Optical defog |
| Heatwave Reduction | N/A | Support |
| Illuminator |
| Light On/Off Control | Auto/Manual |
| Illumination Distance (IR) | N/A | 250 m (820.2 ft.) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft.) | N/A |
| Events |
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication | Watermark, IP address filtering, Access policy, Alarm output, Alarm input, User authentication, RTSP authentication, ARP protection |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz, 16 kHz |
| Storage |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| PTZ |
| Number of Presets | N/A | 1024 |
| Preset Patrol | N/A | 16 patrols, up to 64 presets for each patrol |
| Preset Image Freeze | N/A | Support |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | N/A | Support |
| Pan Range | 360° |
| Tilt Range | -15° to 90° |
| Pan Speed | 0.1°/s to 180°/s |
| Tilt Speed | 0.1°/s to 180°/s |
| Interface |
| WIFI | N/A |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP |
| Certification |
| EMC | CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) |
| Protection | IP66 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |
| General |
| Power | DC 24 V (±25%), AC 24 V (±25%) |
| Power Consumption | Max. 63 W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø270 mm × 497 mm (Ø 10.6" × 19.6") (Ø × H) |
| Weight | 10.08 kg (22.2 lb.) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
