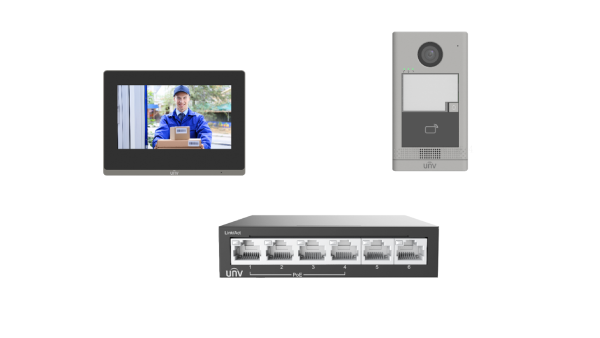

| | KIT/202S/372S/NSW2020 |
| Basic Business |
| WDR | Support DWDR |
| Protocol | Private protocol |
| Button | 2 x button(Call button、Tamper button) |
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Specification Index |
| Card Capacity | 10000 |
| Maximum Connected Indoor Station | 20 |
| Hardware Specification |
| FOV | Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9°
|
| Power Consumption | <10W
|
| Volume Adjustment | Support |
| Audio Quality | Noise suppression, echo cancellation, AGC |
| Audio Input | 1 x Built-in omnidirectional microphone |
| Audio Output | 1 x Built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08
|
| Power Supply | DC12V ±25%, IEEE802.3af PoE power supply |
| Operating System | Linux |
| Illuminator | IR light (adaptive) |
| Weight | 375g |
| Mount Method | wall-mounted、recessed installation. |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply |
| Interface | Power*1, network port*1, RS485*1, Wiegand*1, IO input*4, door lock*2 (support electric lock/door magnet), tamper button*1 |
| Dimensions (L x W x H) | 95.5mm*175.5mm* 33mm |
| Operating Environment | -40°C to 60°C, 10% to 90%, noncondensing, outdoor |
| Power Output | 12V/0.25A |
| Compliance |
| NDAA Compliant | Support |
