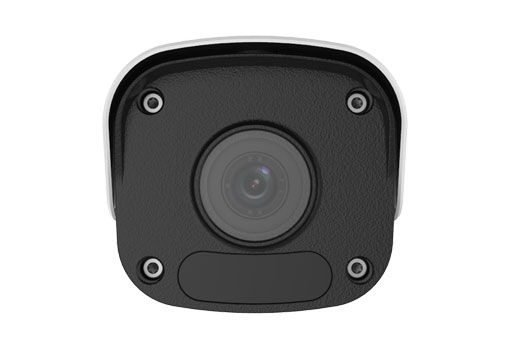

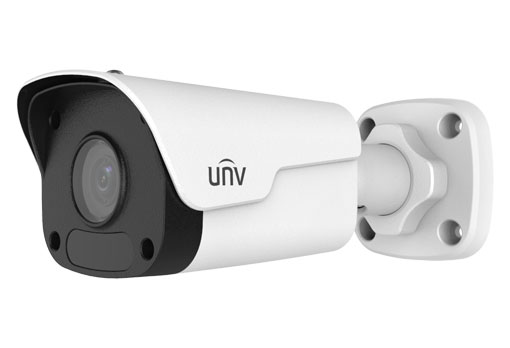

IPC2122CR3-PF40(60)-A - Uniview - Leader of AIoT Solution

Day/night functionality

Smart IR, up to 30m (98ft) IR distance

2D/3D DNR (Digital Noise Reduction)

Ultra 265, H.265, H.264

ROI (Region of Interest)

ONVIF Conformance

Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

Wide voltage range of ±25%

IP67

	IPC2122CR3-PF40-A				IPC2122CR3-PF60-A
Camera
Sensor	1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F2.0				6.0mm@F2.0
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	4.0	66.7		26.7		13.3		6.7
	6.0	90.0		36.0		18.0		9.0
Angle of View (H)	86.5°				55.4°
Angle of View (V)	44.1°				30.2°
Angle of View (O)	106.4°				68.1°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°				Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.02Lux (F2.0, AGC ON) 0Lux with IR on
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 1080P (19201080), Max 25fps; Sub Stream: 4CIF (704576), Max 25fps; Third Stream: CIF (352*288), Max 25fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration	ONVIF (Profile S, Profile T), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 5.5W
Dimensions (L × W × H)	167.3 × 62.9 ×62.7mm (6.6” × 2.5” × 2.5”)
Weight	0.27kg (0.60lb)
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
