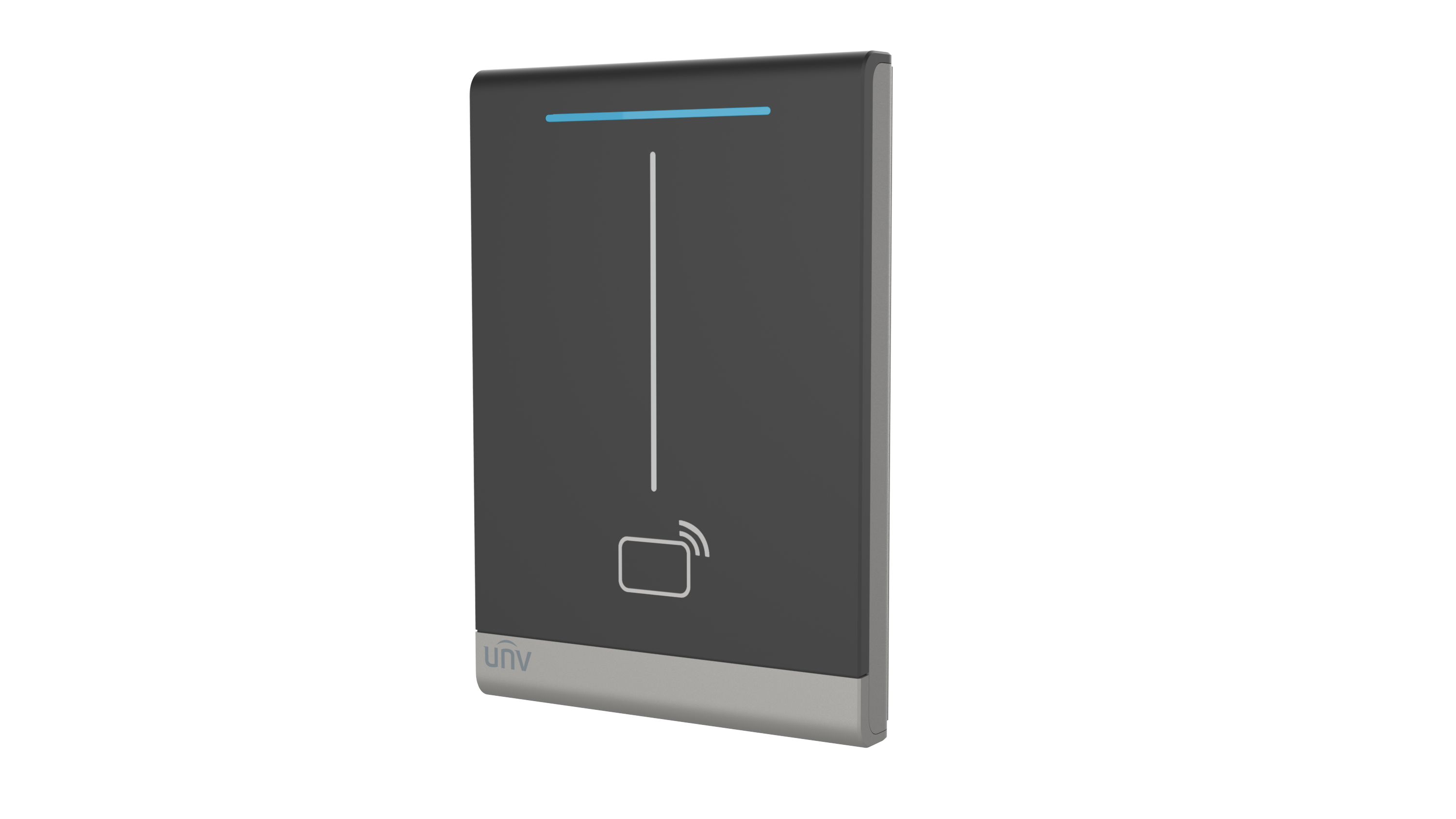

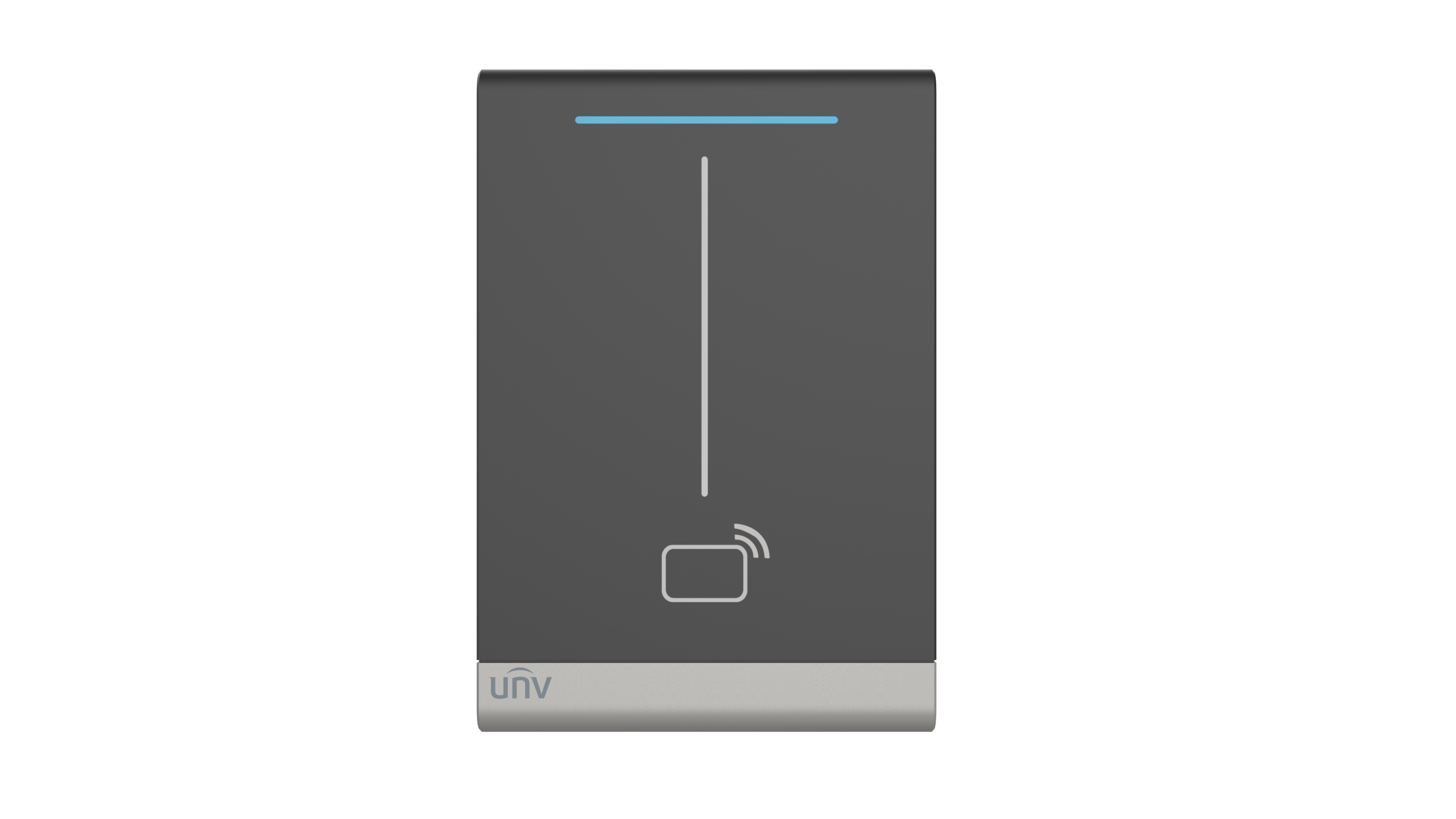

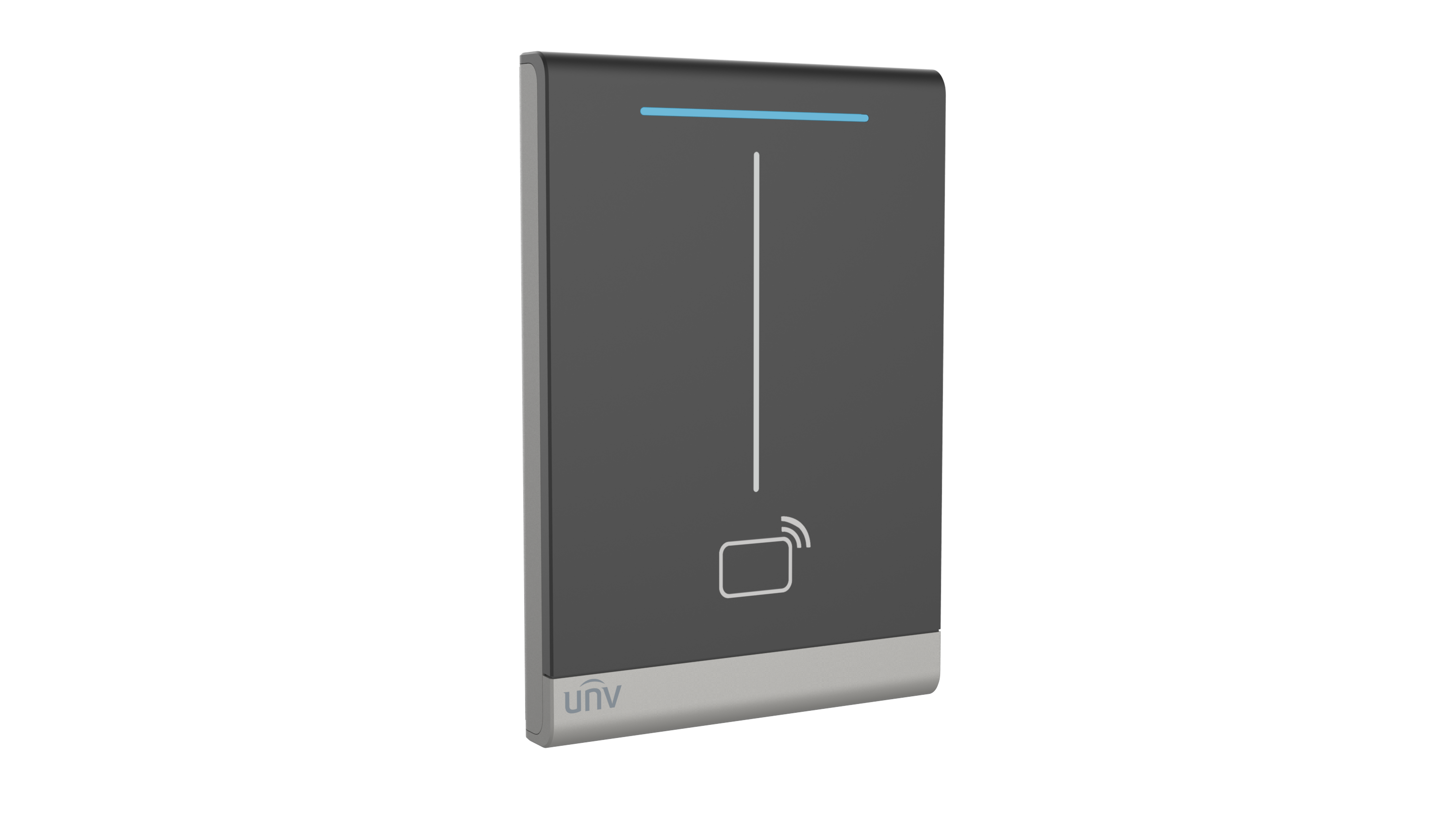

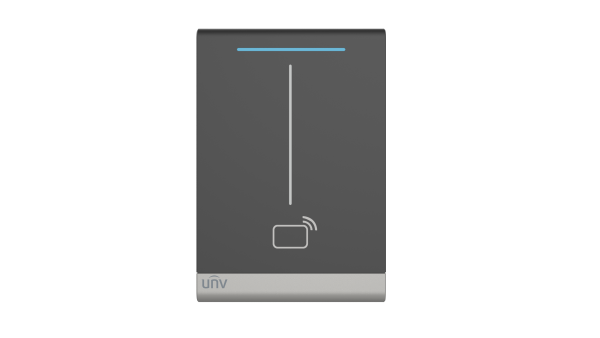

OEC-R3H-M
Wall Mounted Mifare Card Reader
• Supports Wiegand/RS-485 data output.
• Built-in buzzer.
• Supports indoor and outdoor application.
• Stability, sensitivity, and responsiveness.
• Supports ISO 14443-A and ISO 14443-B protocols.
How to buy
 OEC-R3H-M
Hardware Specification
Operating Frequency13.56MHz
InterfaceWiegand 26/34, RS485
MaterialPC
Dimensions (L x W x H)129*88*21mm
Weight134g
Mount Method115*73mm junction box, 86*86mm junction box
Operating Temperature-30°C to 65°C
Operating Humidity10% to 90%
Storage Temperature-40°C to 65°C
IndicatorSteady blue: Normal operation;
Steady green for 1s: Card authentication succeeded;
Steady red for 1s: Card authentication failed
Power Consumption0.732W
Operating VoltageDC 12V ± 25%
Operating Current61mA
Reading DistanceIC card: max. 5cm
Authentication ModeCard
Protection LevelIP65
Basic Business
Reading Time< 1s
Card TypeMifare card
