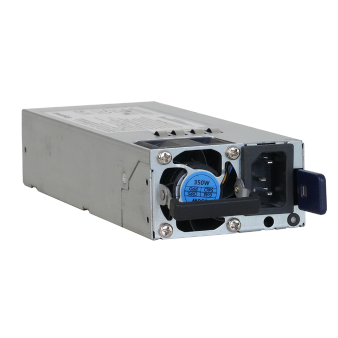

PWR-DC12-350A-IN
350W Power Accessories Module
Specification
Download
How to buy
 PWR-DC12-350A-IN
AC Input
Voltage90～264V AC
Frequency47～63Hz
Power Factor≥0.95
Input Current≤6.3A@100-240VAC
Input ProtectionInput undervoltage, Input overvoltage
DC Output
Voltage/Current+12VDC/29A, +12VStandby/2.1A
Output Power350W
Output Efficiency≥89%, 220V AC/29A
Line Regulation±5%
Load Regulation±5%
Regulated Voltage Accuracy±5%
Dynamic Response Overshoot±5%
Current Sharing Rate±5%
Output ProtectionShort Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection
Other
Indicator lightNormal: green on, Abnormal: Yellow on
Working Temperature0~50℃
Storage Temperature-40~70℃
Working Humidity10%~90%
Heat dissipationVentilating fan design, heat emission at back
Dimension (D × H × W)185mm×40mm×73.5mm
Certification
EMC standardsEN55032, EN 61000-3-2, EN55035
NEBS standardsSR-332 ISSUE 2
Approved standardsCB, FCC, UL
