UAC-T128-ADF28(40)MS

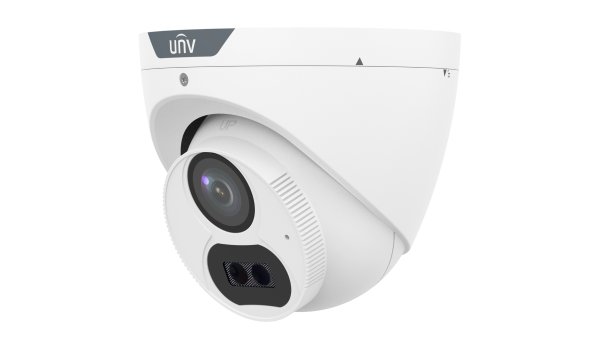

8MP LightHunter Fixed IR Turret Analog Camera
• High quality imaging with 8MP resolution
• TVI/CVI/AHD/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• LightHunter monitoring with high-sensitivity sensor
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• 120dB true WDR technology enables clear image in strong light scene
Specification
Accessories
Download
How to buy
 UAC-T128-ADF28MSUAC-T128-ADF40MS
Camera
Max Resolution8 MP
Sensor Size1/2.7" CMOS
Min. Illumination0.005 lux (F1.6, AGC ON)
0 lux (IR ON)
Lens
Focus2.8 mm4.0 mm
Lens MountM12
Angle of View (H)109.1°86.8°
Angle of View (V)61.0°49.4°
Angle of View (D)126.7°99.9°
Illuminator
Illuminator NumberTwo IR illuminators
Illumination Distance40m
Lifetime≥ 60000 hours
Video
Resolution4K: 3840(H) × 2160(V)
5MP@20fps: 2592(H)×1944(V);
4MP: 2560(H)×1440(V)
Frame RateCVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps
TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, WDR
Day/NightThree modes: Auto (default), Day, Night
Digital Noise Reduction2D/3D
White BalanceTwo modes: Auto (default), Manual
WDR120 dB WDR
Smart IRSupport
FlipSupports 180°horizontal flip, 180°vertical flip
Digital DefogN/A
Audio
Built-in MicSupport
Camera AudioCVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity≤ 95% RH (non-condensing)
Surge Protection4kV for power&4kV for video output interfaces
General
PowerDC 12 V ± 25%
Power ConsumptionMAX 4.8W
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount
DimensionsΦ111mm*98mm (diameter*height)
MaterialMetal
Weight417g(0.92lb)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
