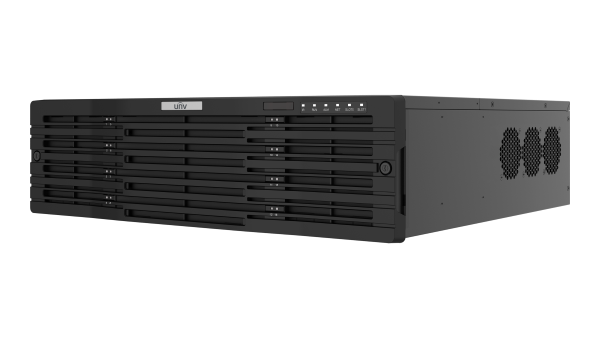

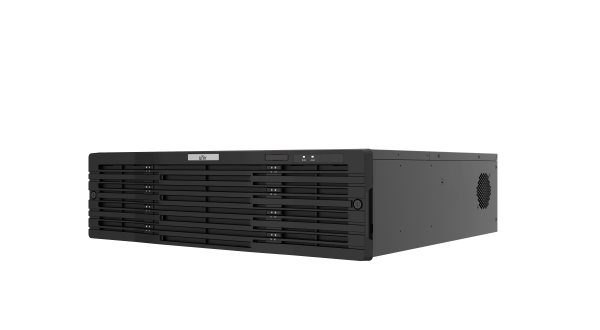

NVR516-64
16 HDDs 64-ch 3U Network Video Recorder
• Support Ultra 265/H.265/H.264 video formats
• 64/128-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI1, HDMI2 and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Redundant power supply optional
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• Support 2 miniSAS Interfaces
• Support 12V power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare
Specification
Accessories
Download
How to buy
 NVR516-64NVR516-128
Decoding
Decoding FormatUltra 265, H.265, H.264
Decoding Capability4 x 12MP@20, 4 x 4K@30, 16 x 1080P@30, 36 x 720P@30, 64 x D1
Decoding Capability DescriptionThe resolution of each channel cannot exceed 4096 pixels in length or width
Audio CompressionG.711A, G.711U
Network
Incoming Bandwidth384 Mbps512 Mbps
Outgoing Bandwidth384 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input64-ch128-ch
BNC Audio Input1-ch
Video/Audio Output
HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz (HDMI audio output is not supported)
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
BNC Audio Output1-ch
Liveview DisplayVGA:1/4/6/8/9/16/25/36,
HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
Corridor Mode Screen3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio1-ch, BNC(Using the audio input and output)
Snapshot
FTP/Schedule/Event SnapshotFull-ch snapshot (max. 4000 × 3000 video resolution, with snapshot resolution same as the video resolution)
Recording
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local16-ch
Smart
VCA Detection by IPCFace Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
VCA SearchMotor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
Smart by IPCAll channels (up to 32 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm
General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded
GUI Language
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA16 SATA Interfaces
CapacityUp to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Array TypeRAID 0, 1, 5, 6, 10, 50, 60
Hot SwapSupport
External Interface
Network Interface4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface, 2 1000 M SFP Ethernet Interface
USBRear panel: 4 × USB3.0
RS4851
RS2321
Alarm In24-ch
Alarm Out8-ch
eSATA1
miniSAS2
Power Output12 V
Power SupplyAC 100 to 240 V
Power SwitchSupport
Redundant Power SupplySupport
Working Environment
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 50W
Dimensions
Weight (without HDD)≤ 10Kg (22.05lb)
Dimensions482mm ×477mm × 131mm (19.0"×18.8"×5.2")
Certification
CertificationCE; FCC; UL; RoHS; WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B
