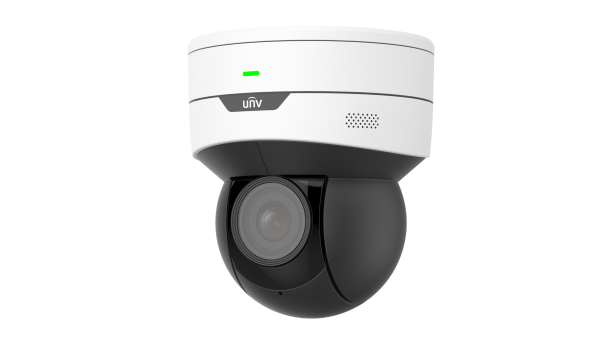

IPC6412LR-X5UPW-VG
2MP 5X LightHunter Wi-Fi IR Network Mini PTZ Camera
• High quality image with 2 MP, 1/2.7" CMOS sensor
• 1920 × 1080@30 fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 5X optical zoom allows for closer viewing of subjects
• Smart intrusion prevention, supports false alarm filtering, including cross Line, intrusion, enter area, leave area detection
• automatic selection of best snapshots
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Wi-Fi connection and easy installation
• Built-in Mic & Speaker, support two-way audio
• Alarm 1 in and 1 out
• Smart IR, up to 30 m (98 ft) IR distance
Specification

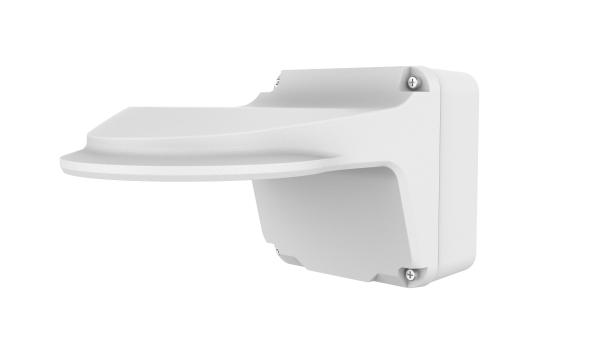

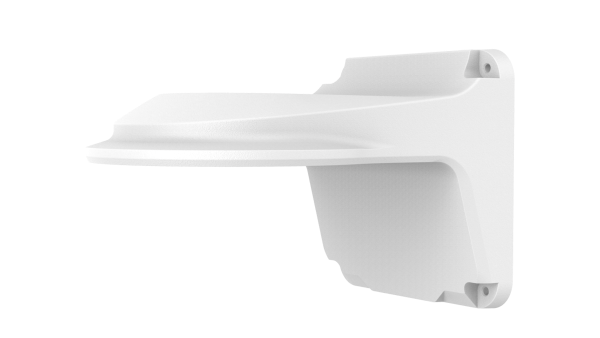

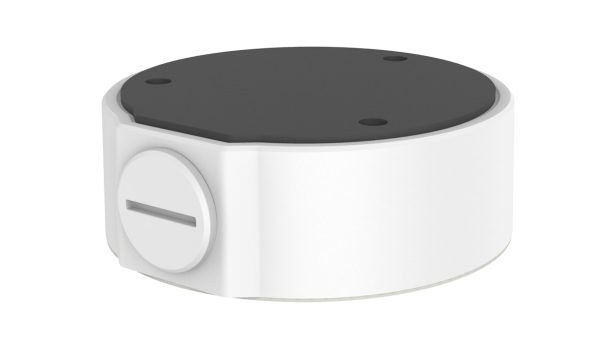

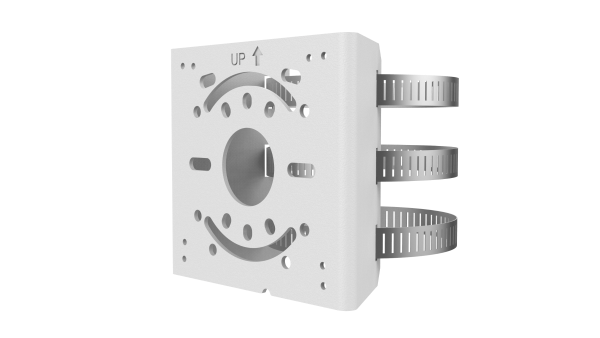

Accessories
Download
How to buy
 IPC6412LR-X5UPW-VG
Camera
Sensor1/2.7" CMOS
Min. IlluminationColour:0.003 lux (F1.2, AGC ON)
0 lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDR120 dB
S/N＞52dB
Lens
Focal Length2.7 to 13.5 mm
Optical Zoom5X
IrisF1.2
Field of View (H)106.9°~30.6°
Field of View (V)56.0°~17.7°
Field of View (D)131.5°~39.8°
DORI
DORI Distance (Lens)2.7~13.5(mm)
DORI Distance (Detect)70.9m~247.5m(232.5ft~812.0ft)
DORI Distance (Observe)28.4m~99.0m(93.0ft~324.8ft)
DORI Distance (Recognize)14.2m~49.5m(46.5ft~162.4ft)
DORI Distance (Identify)7.1m~24.8m(23.3ft~81.2ft)
Illuminator
Illumination Distance (IR)30 m (98.4 ft)
Wavelength850 nm
Light On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 2MP (1920*1080),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps to 16 Mbps
Privacy Mask24 areas, up to 4 areas per scene
U-codeSupport
ROISupport
Video StreamTriple streams
OSDUp to 8 OSDs
DefogDigital defog
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
HLCSupport
BLCSupport
Heatwave ReductionN/A
Intelligent
Exception DetectionObject removed, Object Left Behind, Scene change, Defocus detection
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Events
Basic DetectionMotion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
General FunctionWatermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16KHZ
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
PTZ
Pan Range350°
Pan Speed0.1°/s ~ 60°/s
Tilt Range0° ~ 90°
Tilt Speed0.1° ~ 50°/s
Number of Presets1024
Preset Patrol16 patrols, up to 64 presets for each patrol
Patrol Stay Time120 s to 1800 s
Preset Image FreezeN/A
Home PositionSupport
Network
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, UNV-Link, UNV-Link Pro
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Audio I/ON/A
Alarm I/O1/1
Serial Port1 * RS485
Built-in MicSupport
Built-in SpeakerSupport
WIFISupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020; EN 61000-3-3: 2013+A1: 2019; EN IEC 61000-3-2: 2019+A1: 2021; EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
General
PowerDC12V(±25%), PoE(IEEE 802.3at)
Power ConsumptionMax 15W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ 129 x 143.6 mm (Ø 5.1" x 5.7") (Ø x H)
Weight0.76kg(1.67lb)
Working Environment-10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
MaterialPlastic
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
