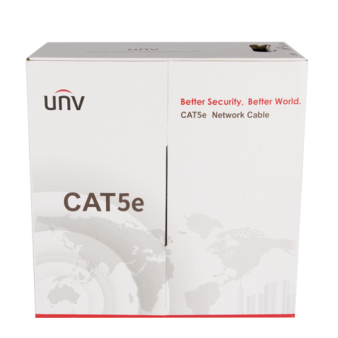

CAB-LC2100A-E1-ECA-IN
Cat5e(UTP),305m,BC,Gray
Specification
Download
How to buy
 CAB-LC2100A-E1-ECA-IN
Cable
Product modelCAB-LC2100A-E1-ECA-IN
Product specificationHSYV-5e 4×2×0.43
Test StandardFluke Test 90m
Packing length305±1 m
Rip-cordYes
Ambient temperature-20℃～75℃
Conductor
Material Solid-Bare Copper
AWG25
Nom.O.D.(mm)0.43±0.05 mm
DC resistance≤113 Ω/km
Insulation
MaterialHDPE
Diameter0.75±0.05 mm
ColorBlue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Sheath
MaterialPVC
External O.D.4.5±0.3 mm
Thickness0.5±0.1 mm
Tensile strength>13.8 Mpa
Color Gray
Surface Printing
ColorBlack
Letter height3.0±0.3 mm
Print error / Space
1±0.005 m
Packing
PackingPallet
Once packing dimension340mm*220mm*340mm
