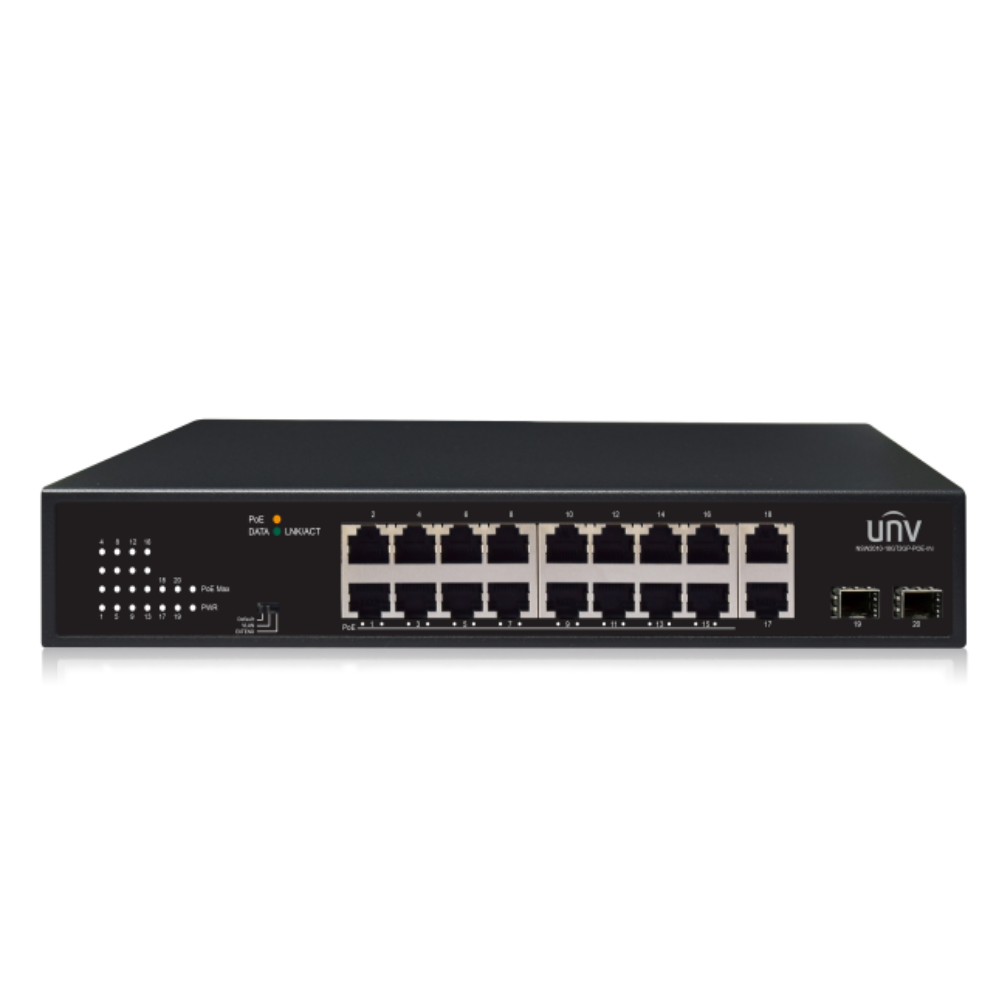

NSW2010-18GT2GP-POE-IN
Ethernet Switch(POE)
• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;
How to buy
 NSW2010-18GT2GP-POE-IN
Hardware Specification
Ports Type16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports(SFP)
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity40 Gbps
MAC8K
Packet Buffer4 M bit
Forwarding performance29.76Mpps
Power supplyAC: 100-240 V, 50/60 Hz
PoEsupport POE
Max. PoE PowerMax capacity: 185 W, Max capacity for single port: 30 W
Cooling Fans1
Weight<4.2 kg
IndicatorPWR (Green), LNK/ACT (Green), PoE (Orange)
Storage Temperature-40 ℃ to 70 ℃
Operating temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Operating humidity10%~90% (non-condensing)
Storage humidity5%~90% (non-condensing)
Dimensions (W×D×H)280mm x 180mm x 44mm
(11"×7.1"×1.7")
Working ModeDefault (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
