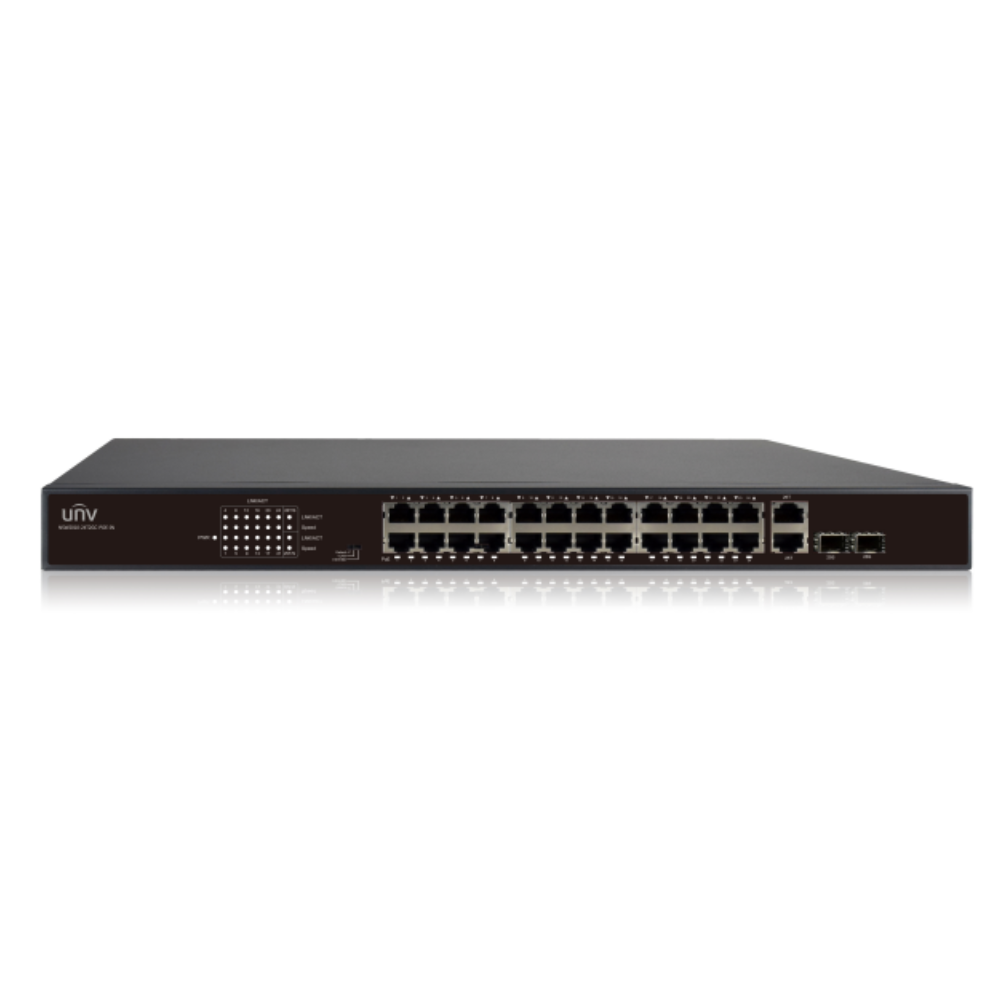

NSW2010-24T2GC-PoE-IN
Ethernet Switch(PoE)
• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
Specification
Download
How to buy
 NSW2010-24T2GC-PoE-IN
Hardware Specification
Ports Type24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity8.8 Gbps
Packet Buffer4 M bit
Forwarding performance6.55Mpps
MAC16K
Max. PoE PowerMax capacity: 370 W, Max capacity for single port: 30 W
Power supplyAC: 100-240 V, 50/60 Hz
Max.Power390W
Weight<4.2 kg
Cooling Fans2
Mean Time Between Failure (MTBF)> 50000 hours
Dimensions (W×D×H)440mm x 207mm x 45mm(17.3"×8.1"×1.8")
Storage Temperature-40 ℃ to 70 ℃
Operating humidity10%～90% (non-condensing)
Storage humidity5%～90% (non-condensing)
Operating temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
IndicatorPOWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, Speed Off: Linked at 10/100 Mbps, Speed On: Linked at 1000 Mbps
Working ModeDefault (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters, VLAN (Secure mode): Downlink ports can communicate only with uplink ports.
