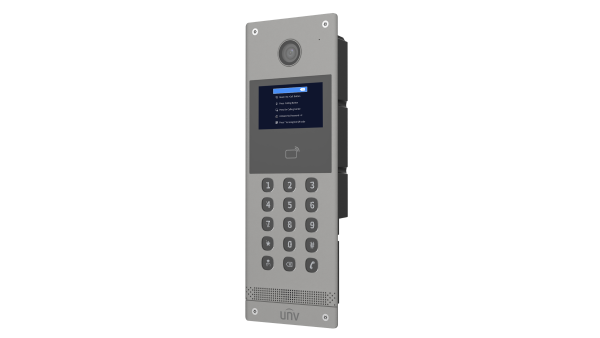

OEU-301S-HMKA
Apartment Door Station(IC Card,15 Keypads)
• Delivered with a recess box for recess mount.
• Built-in heating module supports operation at a very low temperature.
• Metal casing.
• Supports batch configuration.
• Supports call and intercom with the connected indoor stations and apps.
• Supports video monitoring, security alarm, and tamper alarm.
• Built-in IC card reader.
Specification
Accessories
Download
How to buy
 OEU-301S-HMKA
Specification Index
Card Capacity10000
Maximum Connected Indoor Station500
Basic Business
WDRSupport DWDR
ProtocolPrivate protocol
Button15 buttons with braille
Buttons layout:
Row 1: 1/2/3
Row 2: 4/5/6
Row 3: 7/8/9
Row 4: */0/#
Row 5: Management center/Call/Cancel
Hardware Specification
FOVHorizontal: 106.9°
Vertical: 56.9°
Diagonal: 127.9°
Power ConsumptionPoE: 10.73W
DC12V: 8.62W

Volume AdjustmentSupport
Audio Compression Bitrate128Kbps
Audio Output1 x Built-in speaker
Audio Input1 x Built-in omnidirectional microphone
Audio QualityNoise suppression, echo cancellation, AGC
Protection LevelIP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details)
IK08
Weight2.10kg
Mount MethodWall mount
InterfacePower*1, network port*1, RS485*1, IO input*4, IO output*2, door lock*2 (electric lock/door magnet), door opening button*2, door magnet*2, tamper button*1
Network100Mbps network port, supports IEEE802.3af PoE power supply
Dimensions (L x W x H)125mm*358mm*53mm
Power SupplyDC12V ±25%, IEEE802.3af PoE power supply
Operating Environment-40°C to 60°C, 10% to 90%, noncondensing, outdoor
Operating SystemLinux
IlluminatorIR light (adaptive)
Screen Size3.97 inch
