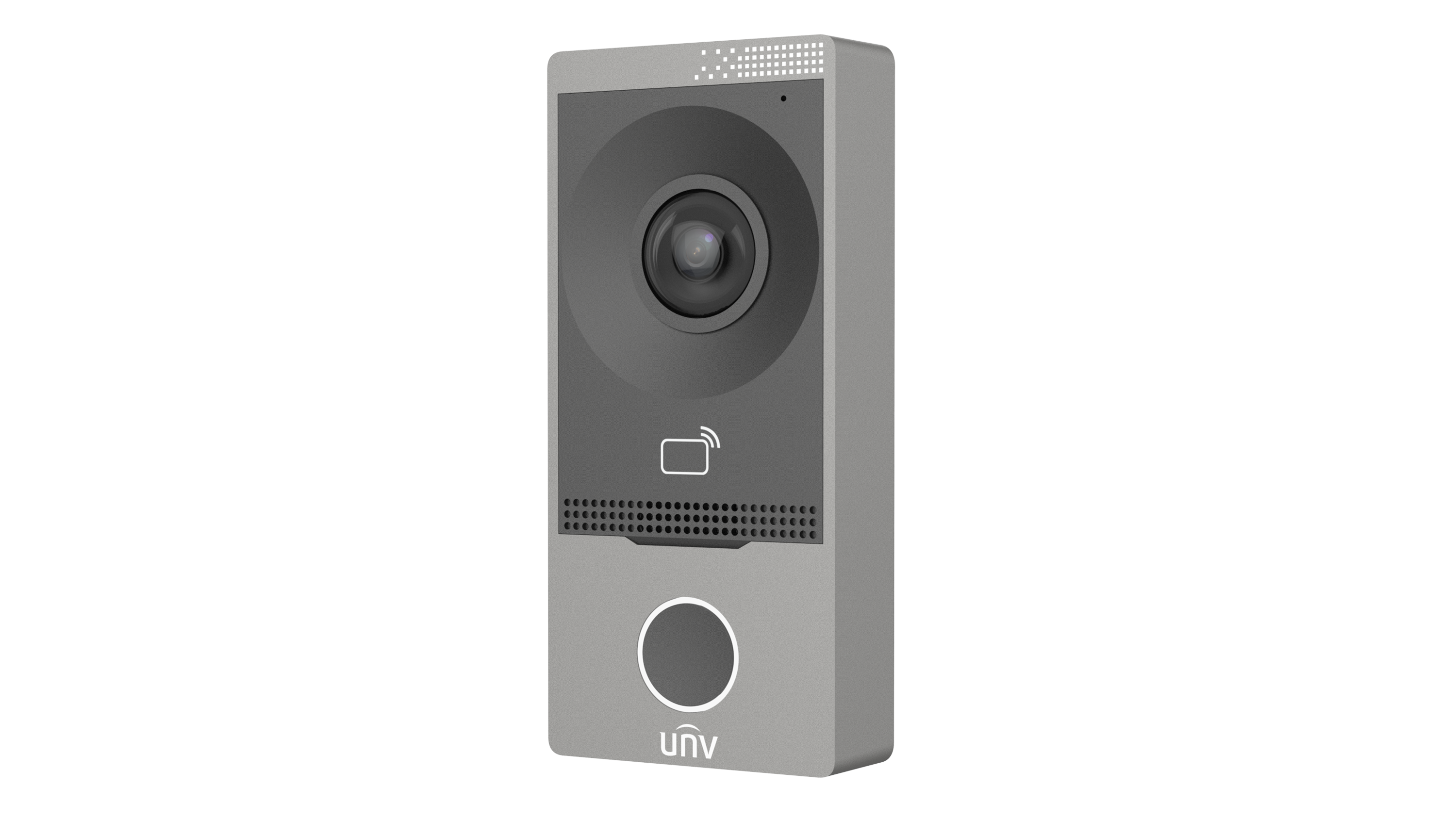

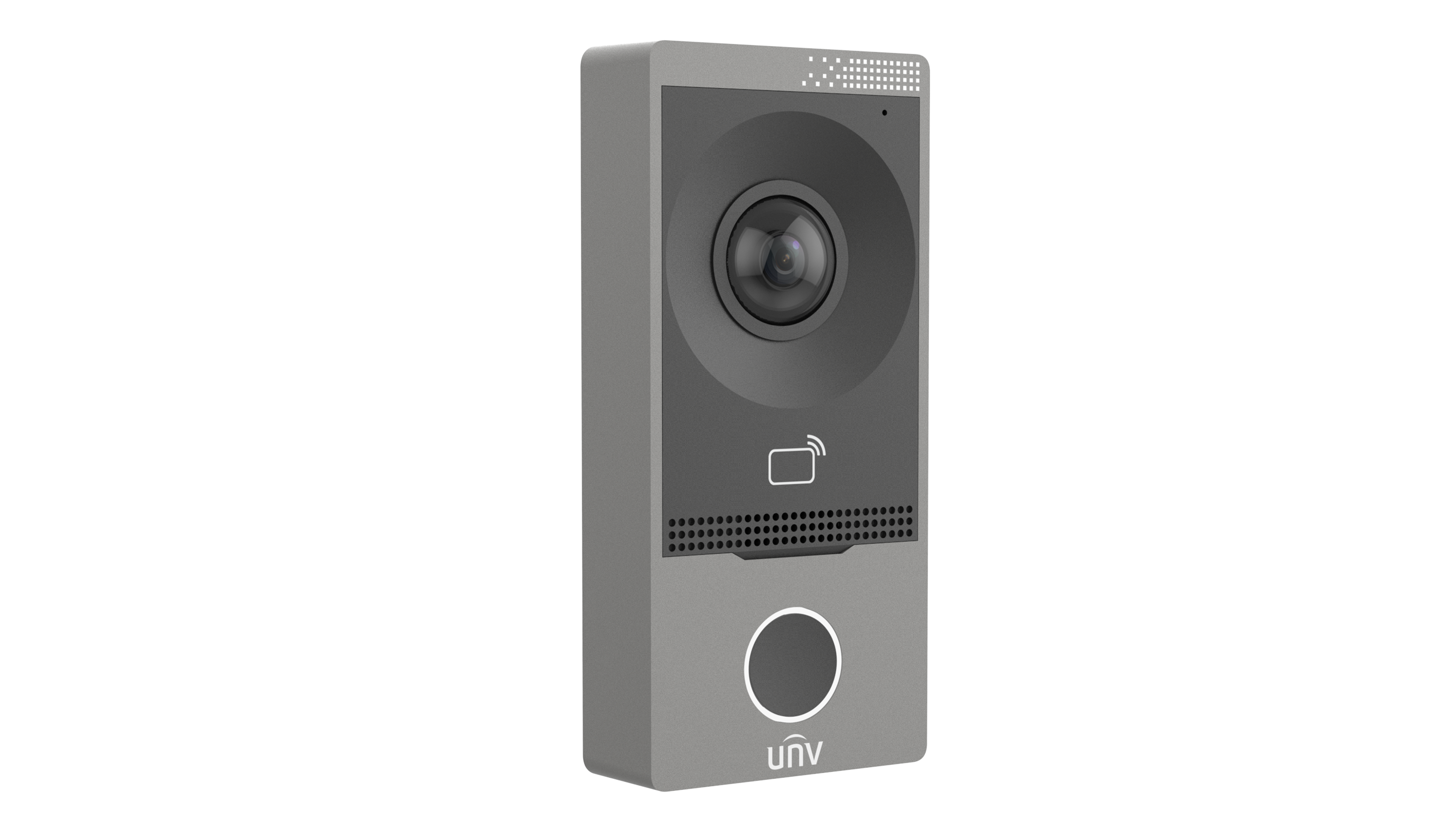

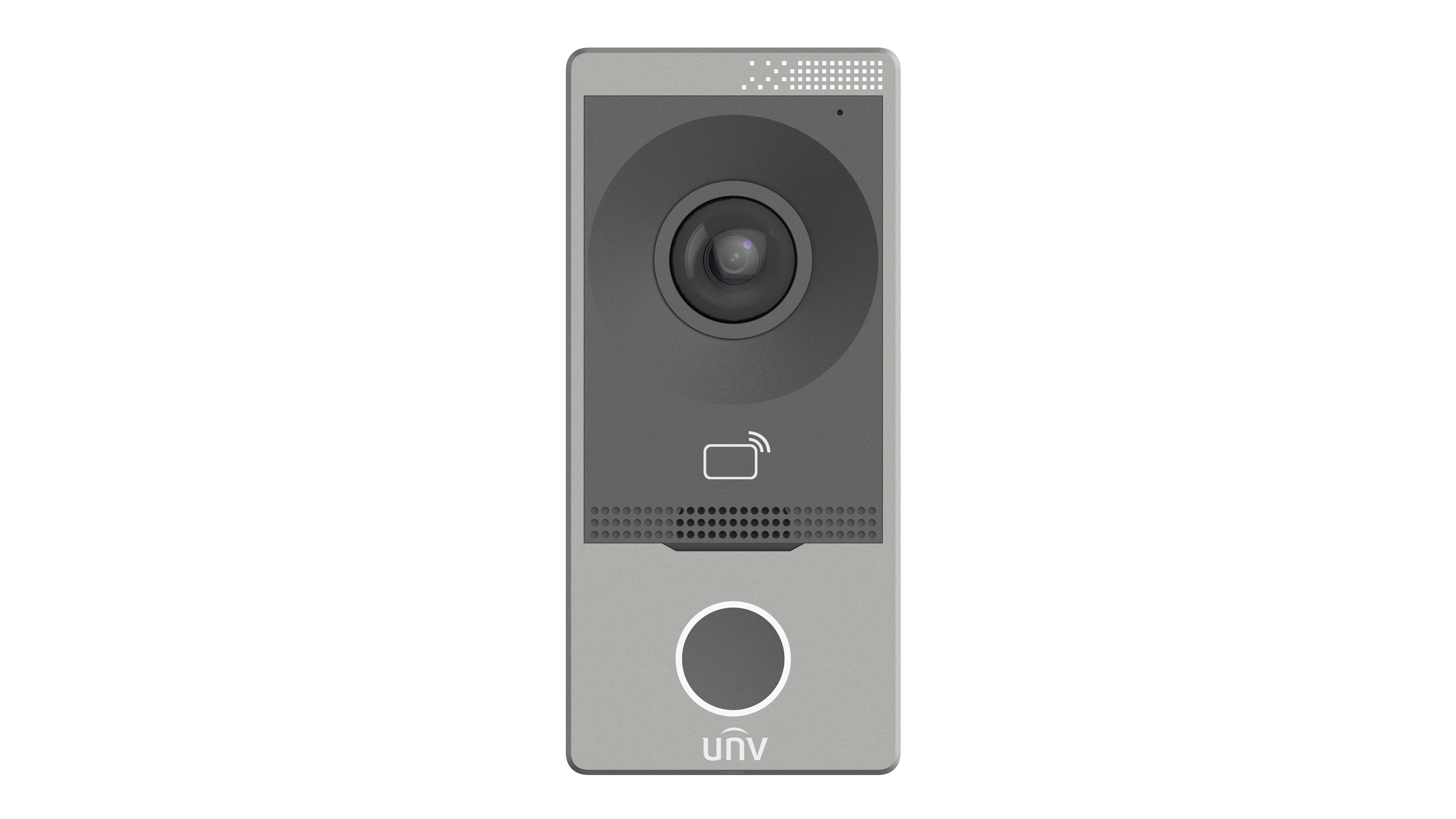

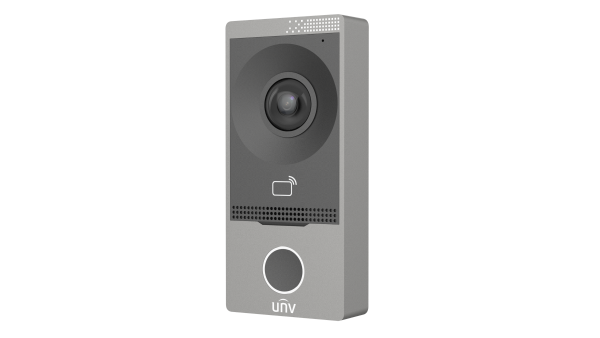

OEU-201B-HMK-W | ||||||||
Hardware Specification | ||||||||
Power Supply | DC 12V±25% input;IEEE802.3af, Standard PoE | |||||||
Operation System | Linux | |||||||
Supplement Light | IR light(Adaptive infrared compensation) | |||||||
FOV | Horizontal:124.3° Vertical:67.5° Diagonal:147.2° | |||||||
Power Consumption | <10W | |||||||
Volume Adjustment | Adjustable | |||||||
Audio Quality | Noise suppression, echo cancellation and AGC | |||||||
Audio Input | 1 built-in omnidirectional microphone | |||||||
Audio Output | 1 built-in speaker | |||||||
Audio Compression Standard | PCM, G711, MP3 | |||||||
Audio Compression Bitrate | 128Kbps | |||||||
Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.) | |||||||
Weight | 0.261Kg | |||||||
Dimensions (L x W x H) | 78mm×170mm×34mm | |||||||
Mount Method | Wall mounted, flush installation | |||||||
Interface | Power *1, network port *1, WIFI, RS485, door lock interface *2, IO input *4 | |||||||
Network | 100Mbps network port, supports IEEE802.3af PoE power supply | |||||||
Operating Environment | ﹣30℃~﹢60℃,10%~90%, non-condensing, outdoor | |||||||
Specification Index | ||||||||
Card Capacity | 2000 | |||||||
Linked Indoor Station Capacity | 20 | |||||||
Basic Business | ||||||||
WDR | Support DWDR | |||||||
Protocol | UNV private protocol | |||||||
Button | 1 physical button |
