DX208 - Uniview - Leader of AIoT Solution

Supports snapshot, offers effective protection for important data against crypto ransomware.

Supports high-level data security, AES enterprise-grade encryption, SSL security certificates, and disaster recovery protection.

Supports log management, allows user to view file access logs.

Supports multiple file sharing protocols including ISCSI, NFS, AFP, SMB, FTP, WEBDAV.

Supports flexible permission management and multi-layer protection mechanism.

Supports smart O&M, advanced device and HDD health monitoring, alert users of potential risks of data loss.

Supports RAID technology, allows the configuration of one or more backup HDDs.

High-speed transmission, supports 10Gigabit network interface card.

Remote access to view live and recorded video anytime.

Centralized video data storage.

Supports access of multiple cameras and real-time video viewing.

Supports centralized device management with rich camera support.

Enhanced data security with AES encryption to protect video privacy and restrict access permissions.

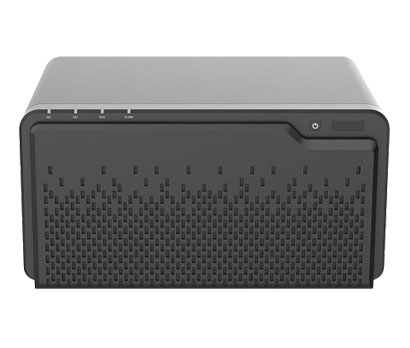

Model	DX208
OS	Ubuntu 5.4
CPU	Embedded Linux
RAM	4GB DDR4, dual SO-DIMM slots, expandable to 32GB
HDD	8 * SATA3.0 slots, compatible with 3.5-inch or 2.5-inch SATA HDD/SSD
Network interface	2GE, 1PCIe 3.0 for expansion to 10Gigabit network
HDMI	1,resolution up to 4096 x 2160@60Hz
USB	2*USB3.0
M.2 HDD slot	2 (NVMe) , with one slot supporting SATA3.0
EMMC	8GB (standard)
Video storage performance	128*2Mbps
Access protocol	Supports Onvif cameras.
Dimensions	350mm (L) × 246mm (W) × 186mm (H)
Weight	6.4 kg (without HDD)
Power consumption	54W (with HDD fully configured)
Noise	Room temperature 25°C≤27.1dB(A) Within the environment’s highest specified limit ≤43.0dB(A) (low power operation mode)
Operating temperature	0°C to +45°C
Storage temperature	-20°C to +70°C
Operating humidity	5% to 95% (non-condensing)
Storage humidity	5% to 95% (non-condensing)
