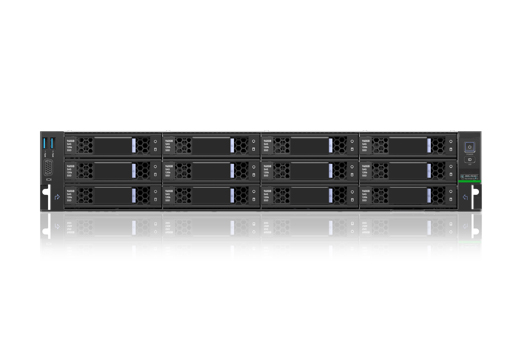

VS-R5328S-C2X - Uniview - Leader of AIoT Solution

High performance

3rd-generation Intel® Xeon® Scalable processors.

Newly upgraded high-speed PCIe 4.0 bus, fully utilizing GPU compute capacity.

Large-capacity storage plus 8 graphics cards for acceleration, providing comprehensive processing capabilities for intelligent online reasoning.

High reliability

12 3.5/2.5-inch HDDs, compatible with NVMe SSD, allowing personalized storage configuration.

Optional 1+1 power redundancy design supports PMBus, module-loss alarm and more to enhance server operation security.

ow power consumption

Green energy-saving design, energy-efficient intelligent speed regulation, and multiple working modes such as optimized overclock, power balance, and green energy-saving for different operating characteristics and environments of GPU.

Health monitoring and reporting functions for key components facilitate data center operation and maintenance.

Parameters	Description
Processor	Intel®4314 Xeon*2
RAM	Standard 32G*4, total 32 slots
Management	1*1000Mbps network interface dedicated for IPMI remote management
Network interface	10GE*2, support PCIe network interface expansion
USB interface	4*USB 3.0 (2 rear, 2 front)
Serial interface	1 (rear)
Video interface	2*VGA interfaces (1 rear, 1 front)
HDD bays	4
Standard HDD	4T SATA HDD1, 1.92T SATA R SSD1
Front HDD expansion	42.5/3.5-inch SAS/SATA/SSD HDDs, expandable to 122.5/3.5-inch SAS/SATA/SSD HDDs
PCIE card slots	8*PCI-E 4.0 slots
Built-in RAID controller	1 (sold separately)
Graphics card	Supports 8* low profile graphics cards (such as T4 card) Sold separately
Power supply	1+1 redundancy
Dimensions	87.8mm(H)x446mm(W)x794mm(D)
Power input	AC: 220V DC: 240V
Weight	38KG (fully loaded)
Environment temperature	Operating: 5°C to 35°C Non-operating: -40°C to 60°C

Datasheet of VS-R5328S-C2X
