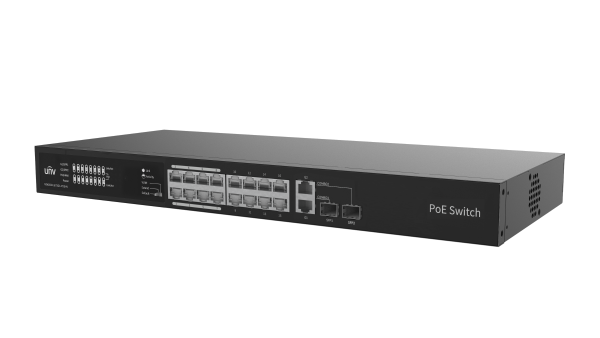

NSW2020-16T2GC-POE-IN

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default (Normal mode), VLAN (Secure mode), EXTEND (Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

مواصفات المنتج

المستندات ذات الصلة

كيفية الشراء

صحيفة البيانات
صورة عالية الدقة
دليل سريع
الأبعاد

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/7/16 8:46:45	UNV NSW2020-16T2GC-POE-IN Unmanaged Ethernet PoE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/21 2:05:16	NSW2020-16T2GC-POE-IN_HD_Image_1.png	png	Download
HD Image	2026/9/21 2:05:16	NSW2020-16T2GC-POE-IN_HD_Image_2.png	png	Download
HD Image	2026/9/21 2:05:16	NSW2020-16T2GC-POE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/3 5:06:28	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/9/21 2:05:16	NSW2020-16T2GC-POE-IN_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	NSW2020-16T2GC-POE-IN
Hardware Specification
Ports Type	16×100Mbps PoE ports (RJ45) +2×1000Mbps Combo ports
Switching capacity	7.2 Gbps
Packet Buffer	4 M bit
Forwarding performance	5.36Mpps
Power Supply	AC: 100 to 240V, 50/60Hz
MAC	16K
PoE Standard	IEEE 802.3 at, IEEE 802.3af
PoE Mode	ModeA (1236), ModeB (4578)
Max.PoE Power	Max capacity:250W Max capacity for single port: 30W
Prior Ports	1 to 8
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Cooling Fans	1
Surge Protection	Common mode ±4KV, Differential mode ±6KV
Max.Power	265W
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Dimensions (W×D×H)	44019044mm
Weight	2.07KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
Compliance
NDAA Compliant	Support
