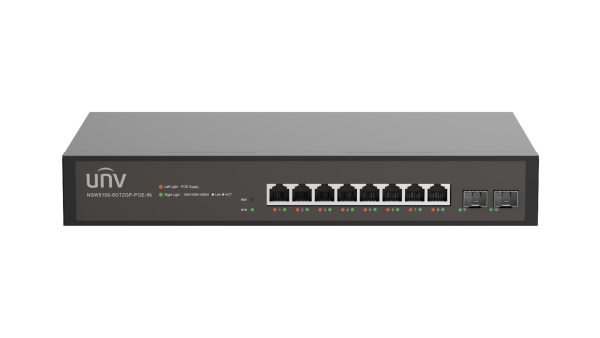

NSW5100-8GT2GP-POE-IN

8GT Layer-2 Switches(PoE)

• Supports device management on the web interfaces.
• Supports IGMP v1/v2 Snooping, STP/RSTP, ERPS.
• All metal casing, secure and reliable.

مواصفات المنتج

المستندات ذات الصلة

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 18:45:58	UNV NSW5100-8GT2GP-POE-IN Web-Managed L2 Switch.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/7 11:26:42	NSW5100-8GT2GP-POE-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

	NSW5100-8GT2GP-POE-IN
Hardware Specification
Ports Type	810/100/1000Mbps RJ45 PoE port, 21000Mbps SFP port
Switching capacity	20 Gbps
Forwarding performance	14.88 Mpps
Packet Buffer	3M bits
MAC	8K
Cooling Fans	0
Max.PoE Power	Maximum total power:150W. Maximum PoE power for single port: 30W
Max.Power	160W
Power Supply	AC: 100 to 240V, 50/60Hz;
Weight	1.50kg
Dimensions (W×D×H)	280 × 125 × 44 mm
Operating Temperature	0℃ to 45℃
Operating Humidity	5% to 95%, non-condensing
Indicator	PWR: Steady on: Normal power input. Off: Abnormal power input. PoE: Off: No PoE power supply. Steady on: PoE power supply is normal. LINK/ACT: Off: The port is disconnected. Steady on: The port is connected. Blinking: The port is transmitting data.
Software Specification
Ethernet	Auto-negotiation, 10/100/1000M half-duplex/full-duplex. Support port rate adjustment. Support port flow control. Support link aggregation（Static-LAG & LACP）. Support port flow statistics . Support port Loopback-detection. Support enabling/disabling ports .
MAC	8K, auto-learning, auto-update
VLAN	Access/Trunk/Hybrid Default VLAN
Maintenance	Support a N :1 port mirroring. Allow to import, export, back up, and restore factory defaults on the Web interface.
Security	MAC/IP ACL Mac Limit
QoS	Support traffic classification based on DSCP/TOS. Support speed limit on ports and streams. Support SP, WRR queue scheduling.
Reliability	Support STP, RSTP, Support ERPS( single ring).
POE	Allow to enable/disable PoE power supply
Multicast	Support IGMP v1/v2 snooping.
