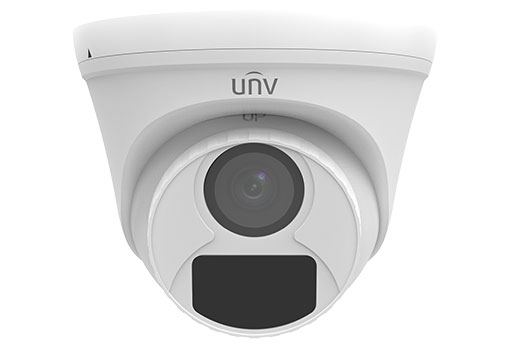

| Model | UAC-T112-F28 | UAC-T112-F40 |
| Sensor | ||
| Pixel | 2MP | |
| Size | 1/3" | |
| Minimum illumination | 0.02 lux (F2.0, AGC ON) 0 lux (IR on) | |
| Lens | ||
| Lens | 2.8mm | 4.0mm |
| Lens mount | M12 | |
| Angle of view | H: 90.5° V: 49.6° D: 109.5° | H: 80.2° V: 40.7° D: 90.5° |
| Illuminator | ||
| Illuminator | One IR illuminator | |
| Illumination distance | 20m | |
| Lifetime | ≥60,000 hours | |
| Image | ||
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) | |
| Frame rate | TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps CVBS: PAL, NTSC | |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
| Image | ||
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | 3 modes: Auto (default), Day, Night | |
| Digital noise reduction | 2D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Smart IR | Support | |
| Flip | Supports 180° horizontal flip, 180° vertical flip. | |
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30℃ to 60℃(-22℉ to 140℉) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4KV | |
| Ingress protection | IP67 | |
| General | ||
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.88W | |
| Mount | Surface mount (default), optional backbox, wall mount bracket | |
| Dimensions | Φ118mm*96mm (diameter*height) | |
| Material | Plastic | |
| Weight | 182g(0.401lb) | |
| Certification | CB, CE, FCC | |
