True color display and perfect color reproduction
Wide viewing angle:178°(H)/ 178°(V)
No color shift from any view angle
Specific menu design, which is simple to operate
Support7*24working and lower power consumption
Adaptively recognize signal
VESA stand bracket
Support multiply language
High fidelity digital processing for a brilliant and vivid video
Professional thermal design to extend equipment lifespan
Screen can reduce blue light, protect eyes
Without ripple,use smooth dimming with DC to eliminate screen flicker
Three sides super slim design, min width can be 2.8mm
High light transmittance, uniform brightness, rich color, wide color gamut

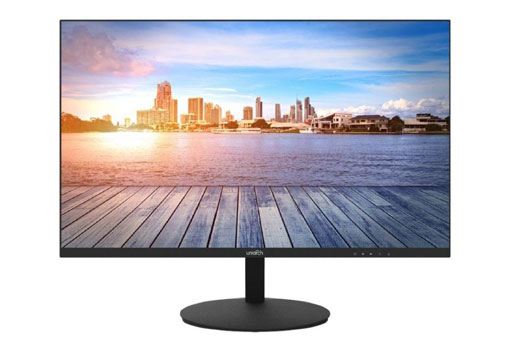

| Model | MT-24-L |
| Display | |
| Display Type | LED Backlight |
| Screen Size | 23.8” |
| Aspect Ratio | 16:9 |
| Pixel Pitch(mm) | 0.275× 0.275 |
| Max Resolution | 1920×1080 |
| Brightness(cd/m2) | 250 |
| Contrast | 1000:1 |
| Response Time(ms) | 14 |
| Color | 16.7M |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| Refresh Rate | 60Hz |
| Interface | |
| Input | VGA ×1,HDMI×1 |
| OSD | |
| Multi-Language | 8 (English, France, Spanish, German, Russia, Korea, Japanese, Simplified Chinese ) |
| Mounting | |
| VESA | 75mm x 75mm |
| General | |
| Power Supply | DC 12V,2A |
| Consumption | <23 W(on) <0.5 W(Standby) |
| Operation Temperature | 0°C ~ 40 °C/32°F~104°F |
| Operating Humidity | 20%~85% (No Condensation) |
| Storage Temperature | -10°C ~50°C /14°F~122°F |
| Storage Humidity | 10%~90% (No Condensation) |
| Dimension (W×H×D) | 541.43mm × 407.27 mm × 210.00mm(With Pedestal) |
| Package(W×H×D) | 602mm × 394mm × 111mm |
| Weight | Net Weight:3.3Kg Gross Weight:4.2Kg |
| Accessory | |
| Standard | HDMI Cable, Adapter, Pedestal, Quick Guide |
| Optional | Hanging Bracket(Model: HB-4022-A) |
