IPC268EA-DZK

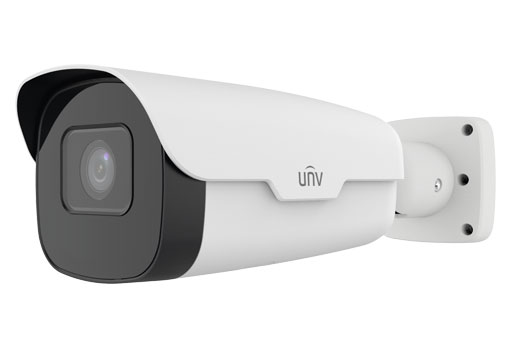

8MP LightHunter Intelligent Bullet Network Camera

• High quality image with 8MP,1/1.8’’ CMOS sensor
• 3840*2160@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Five streams
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• DC12V or AC24V or PoE (IEEE 802.3at) power supply
• Wide voltage range of ±25% in AC, -10%~25% in DC
• Audio 1 in and 1 out, Alarm 2 in and 1 out
• Smart IR, up to 100m(328ft) IR distance
• Micro SD, up to 256GB
• IP67 ingress protection
• IK10 vandal resistant

	IPC268EA-DZK
Camera
Sensor	1/1.8", 8.0 megapixel, progressive scan, CMOS
Lens	2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens
Iris	Auto aperture
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	2.8	63.0(206.6ft)	25.2(82.6ft)	12.6(41.3ft)	6.3(20.7ft)
	12	270(885.6ft)	108(354.2ft)	54(177.1ft)	27(88.6ft)
Angle of View (H)	41.6°~106.5°
Angle of View (V)	24.0°~55.0°
Angle of View (O)	47°~126°
Shutter	Auto/Manual, 1 ~ 1/100000s
Min. Illumination	Colour:0.002lux (F1.2, AGC ON) 0 lux with IR
WDR	120dB
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>55dB
IR Range	Up to 100m (328 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
Video
Video Compression	Ultra 265,H.265,H.264,MJPEG
Frame Rate	Main Stream: 8MP(38402160),Max 30fps; 4MP(25601440),Max 30fps; 2MP(19201080),Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720*576), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
ROI	Supported
Video stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas(8 blacks/4 mosaics+4 blacks)
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC	Support
BLC	Support
Smart
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U,G.711A
Two way audio	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation Ezview EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O	Audio cable
	1 Input: impedance 35kΩ; amplitude 2V [p-p]
	1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	2/1
Network	1 x RJ45 10M/100M/1000M Base-TX Ethernet
Serial Port	1 RS485
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	AC24V±25%, DC12V(-10%~+25%), PoE(IEEE802.3at)
	Power consumption: Max 14W
	Support overcurrent protection, Input short circuit protection
Dimensions (Ø x H)	Φ306.4x104.1x98.1mm (Φ12.1"x4.1"x3.9")
Net Weight	1.60kg(3.52lb)
Material	Sun shield：plastic Front cover：plastic Body：metal Bracket：metal
Working Environment	-40℃~60℃(-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40℃~70℃(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection	6KV
Vandal Resistant	IK10
Ingress Protection	IP67
